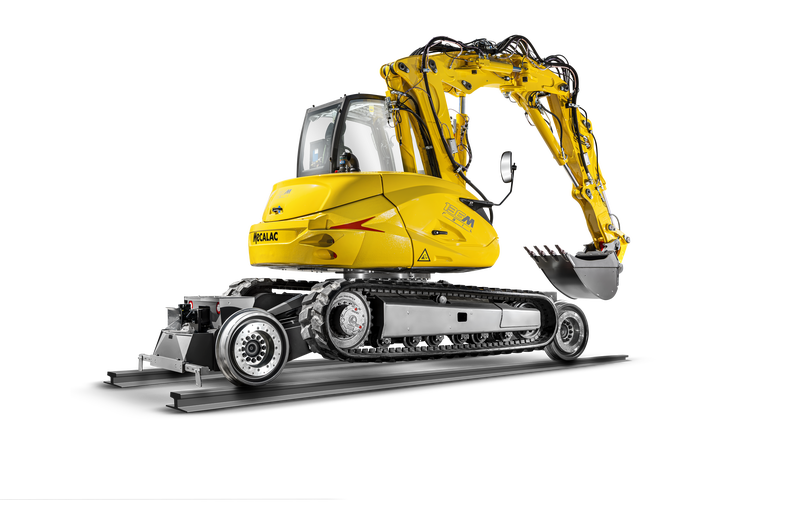

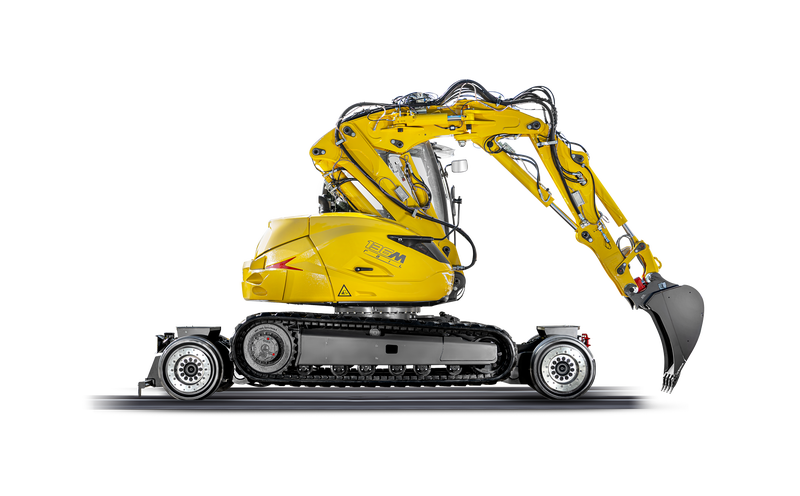

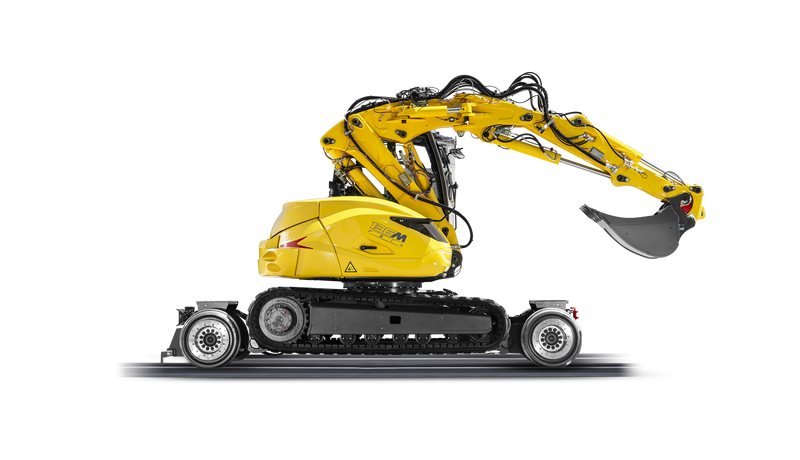

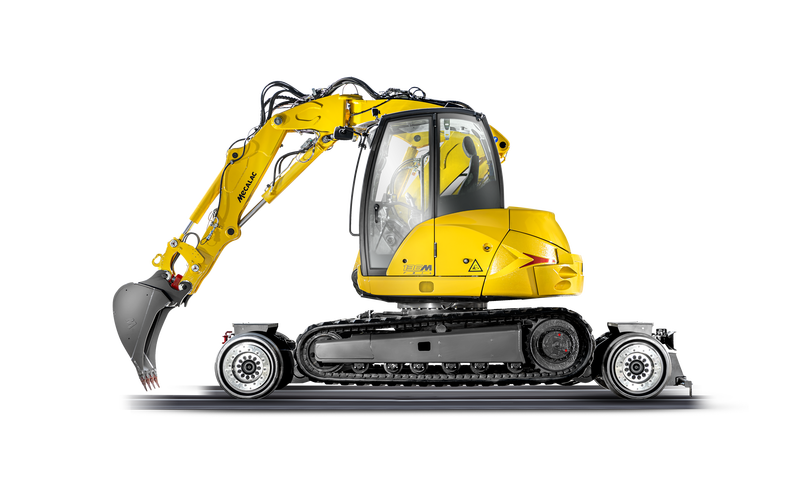

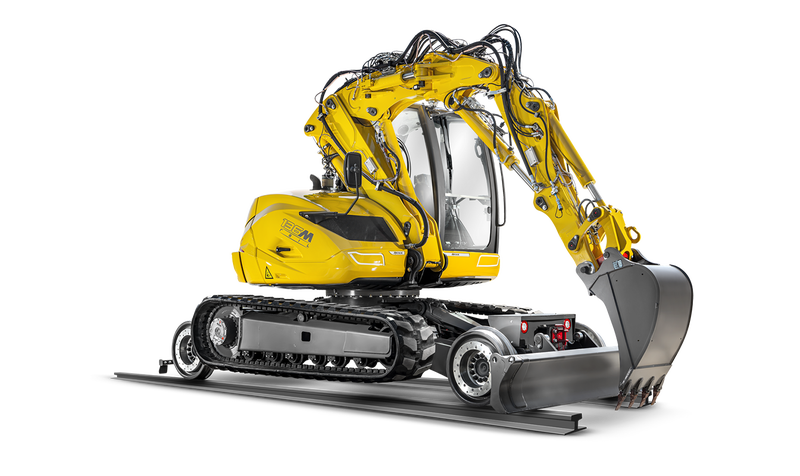

Vías Férreas 136MRail


Compact performer

Like the 106MRail, the 136MRail is a very handy tool for all light to medium applications in urban networks and for working in tight areas. Plus it boosts your overall productivity, also in national networks, with the upmost safety devices to meet the most stringent regulation standards.

136MRail en acción



Pesos en orden de marcha12 830 kg (28,285 lbs)
Boom typeMecalac boom with offset
Velocidad de desplazamiento (rieles)20 kph (12.4 mph)
TransmisiónCrawler closed circuit
Motor potencia (kW/hp)55,4 kW (75hp - 74.3 imperial hp) at 2200 rpm
Velocidad de desplazamiento9 kph (5.6 mph)
Normas de emisiónEU Stage V / U.S. EPA Tier 4 Final
Maximum torque405 Nm (287 lbf) à 1300 tr/min (rpm)
Transmisión (rieles)Hydrostatic
Anchuras totales2300 mm (7’7”)
Possible Track Widths950-1600 mm (3’1.4’’-5’3’’)
Capacidad de elevación hasta la altura totalAt 3 m (10 ft) and 0°. Height: 3 m (10 ft): 4T
At 6 m (19’8’’) and 90°. Height: 3 m (10 ft): 800 kg (1,764 lbs)
Traction capacity at the tow bar1500 kg (3,307 lbs)
Traction capacity - maximum Trailer14 t (30,864 lbs)
Pneumatic Braking System
Height and Swing Limiters
RCI Load Limiter
