Strada-ferrovia 136MRail


Compact performer

Like the 106MRail, the 136MRail is a very handy tool for all light to medium applications in urban networks and for working in tight areas. Plus it boosts your overall productivity, also in national networks, with the upmost safety devices to meet the most stringent regulation standards.

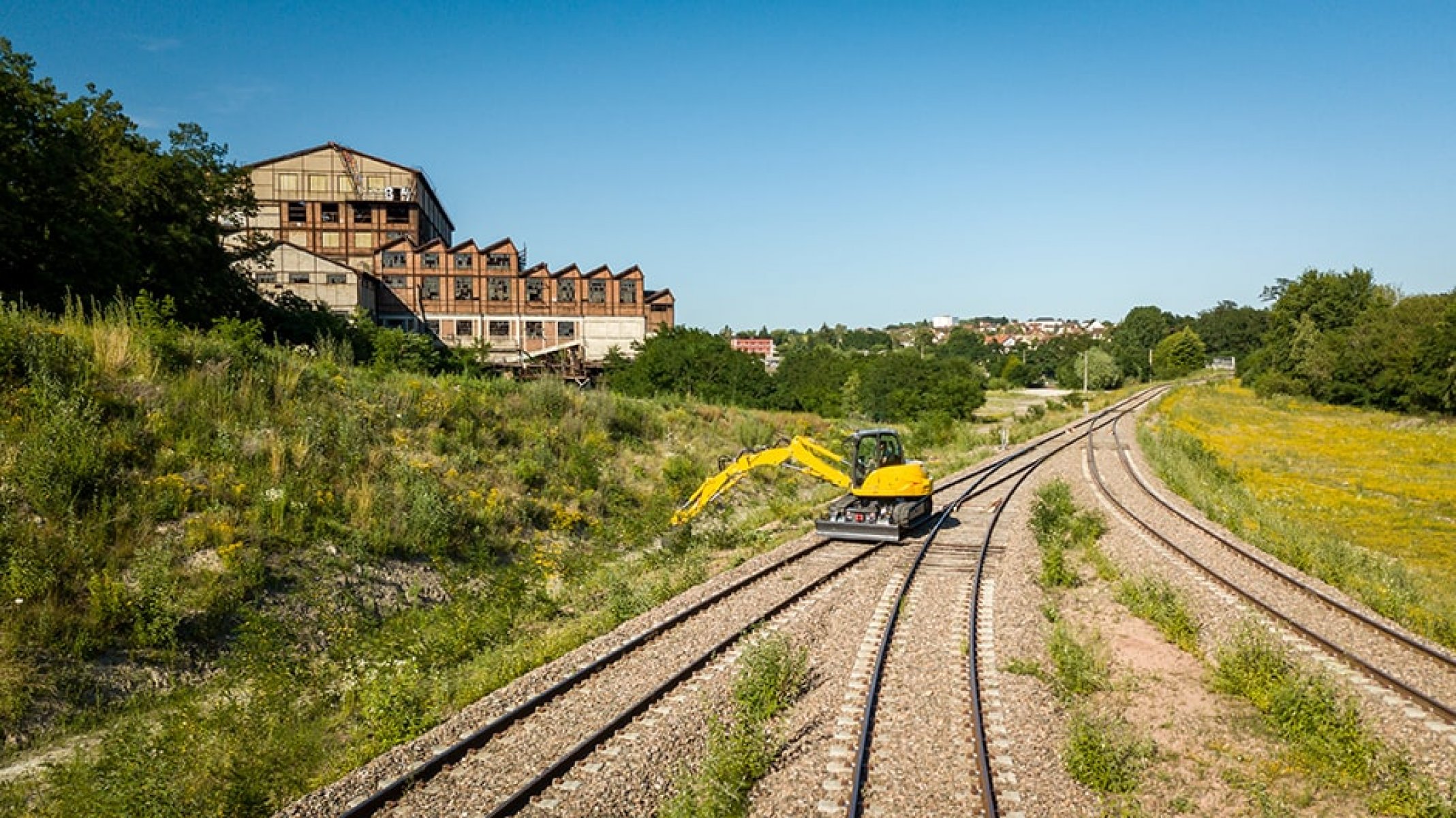

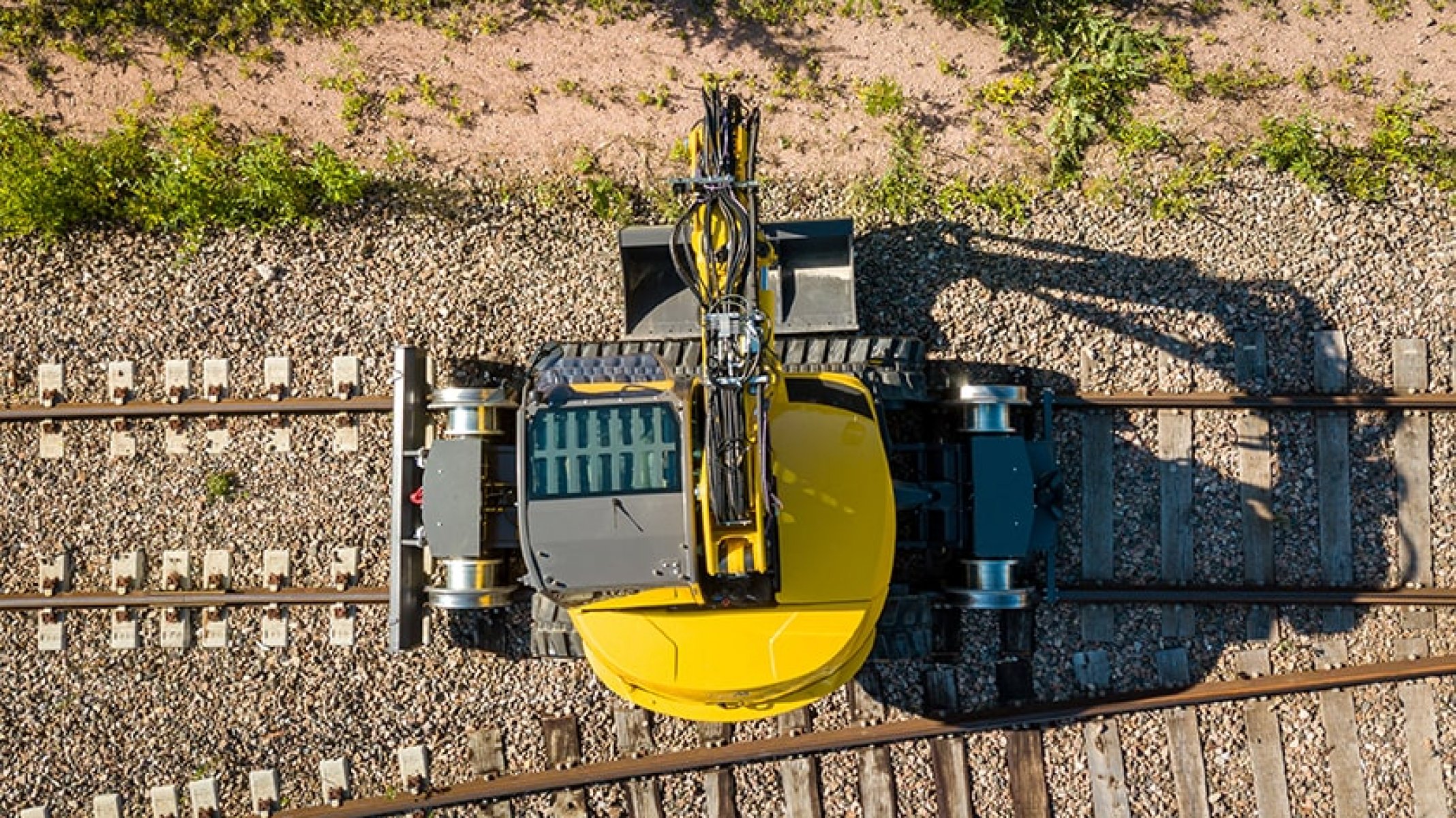

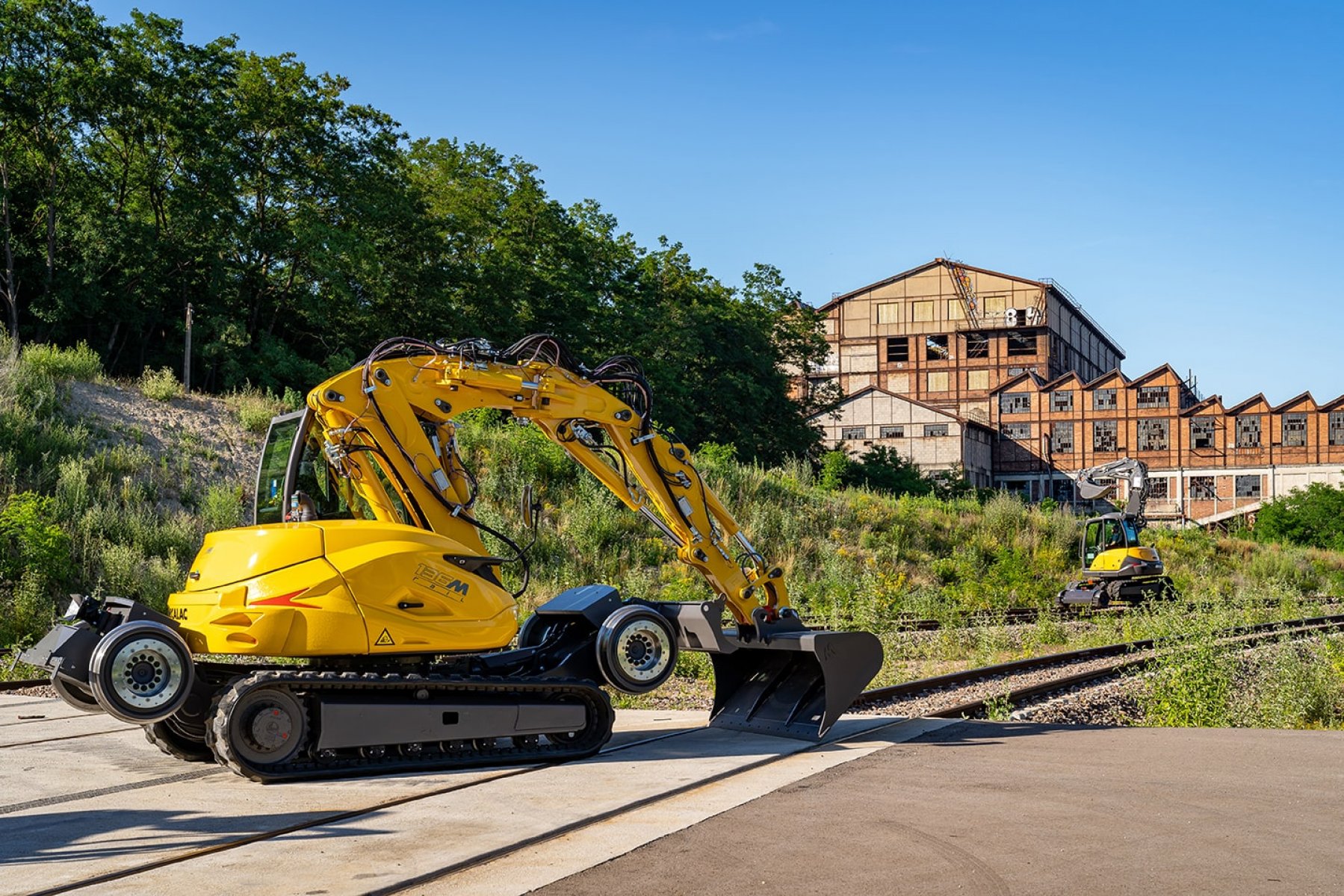

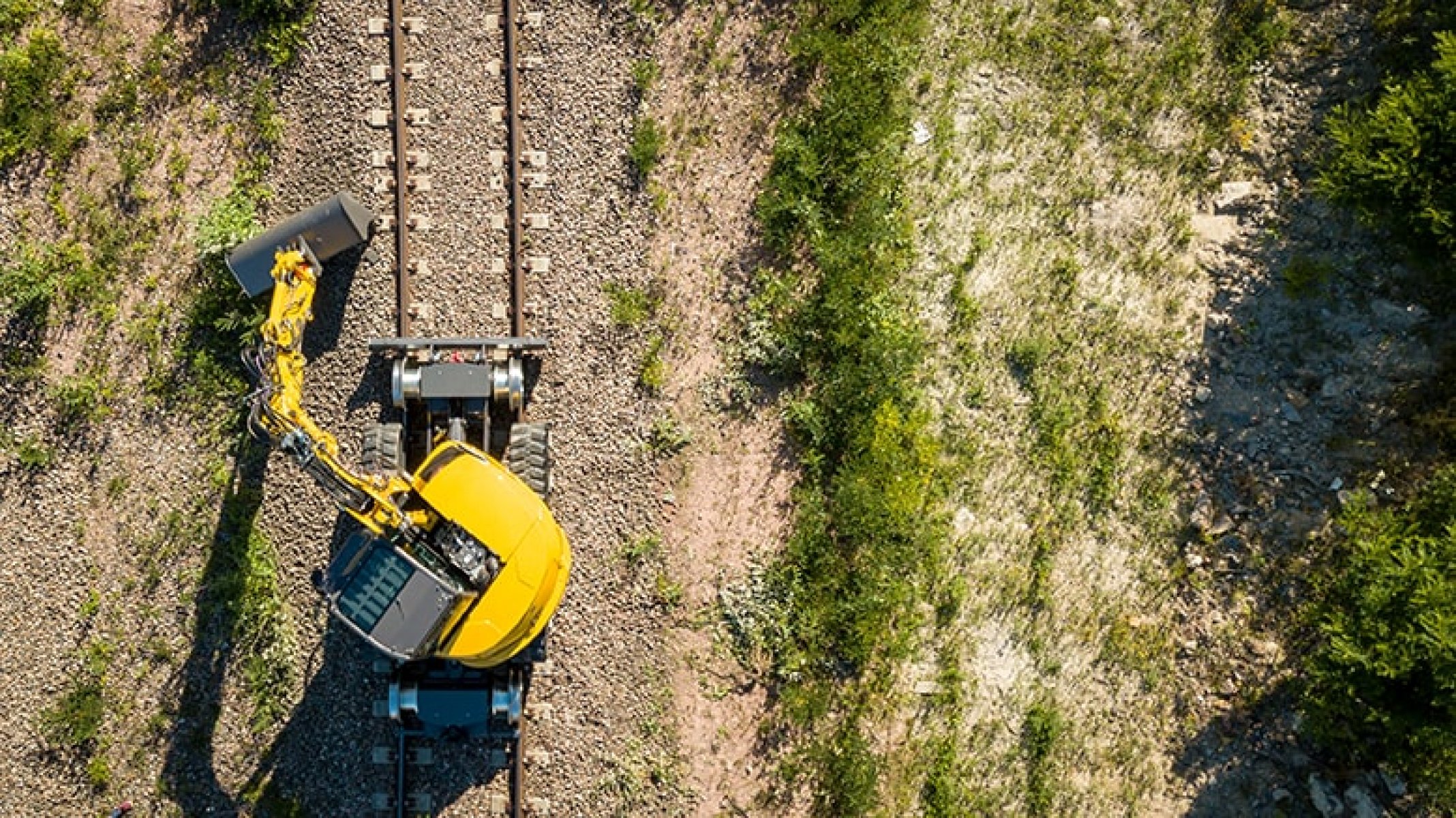

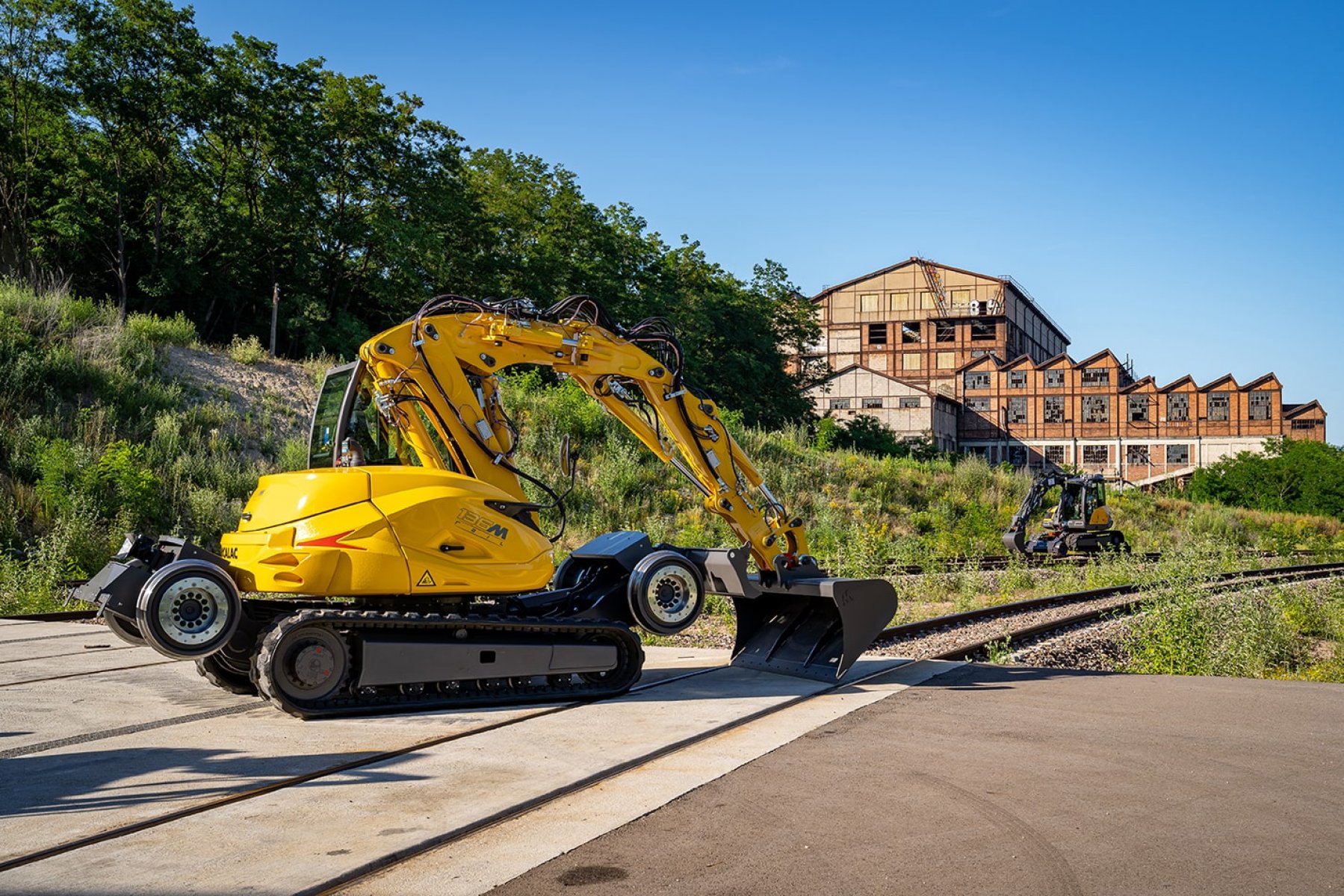

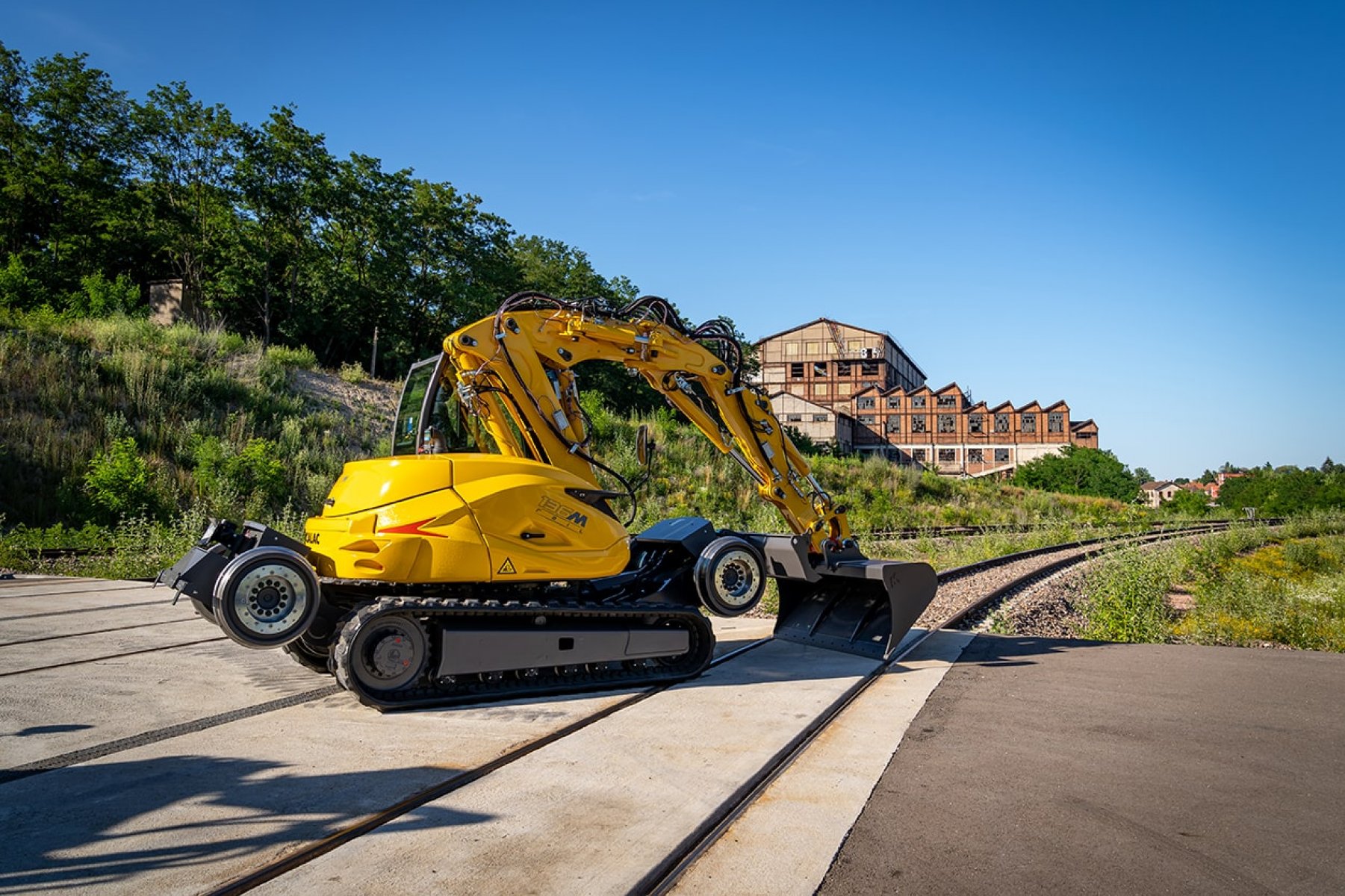

136MRail in azione



Massa operativa a vuoto12 830 kg (28,285 lbs)
Boom typeMecalac boom with offset
Larghezza macchina2300 mm (7’7”)
Velocità di spostamento9 kph (5.6 mph)
Velocità di spostamento (ferrovia)20 kph (12.4 mph)
Potenza (kW/cv)55,4 kW (75hp - 74.3 imperial hp) at 2200 rpm
Emissions standardsEU Stage V / U.S. EPA Tier 4 Final
Maximum torque405 Nm (287 lbf) à 1300 tr/min (rpm)
TrasmissioneCrawler closed circuit
Trasmissione (ferrovia)Hydrostatic
Possible Track Widths950-1600 mm (3’1.4’’-5’3’’)
Capacità di sollevamento maxAt 3 m (10 ft) and 0°. Height: 3 m (10 ft): 4T
At 6 m (19’8’’) and 90°. Height: 3 m (10 ft): 800 kg (1,764 lbs)
Traction capacity at the tow bar1500 kg (3,307 lbs)

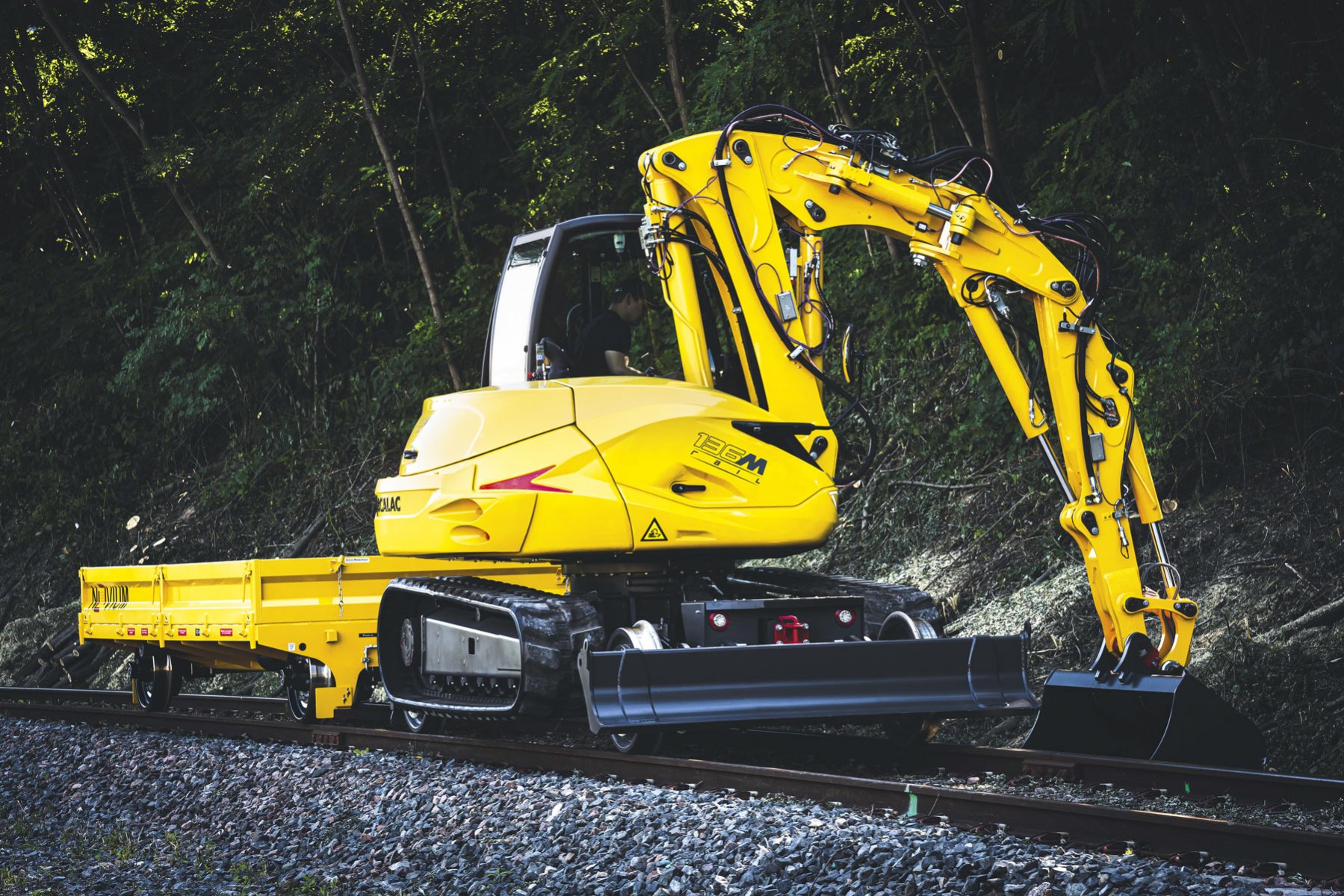

Traction capacity - maximum Trailer14 t (30,864 lbs)
Pneumatic Braking System
Height and Swing Limiters
RCI Load Limiter


Contatta il concessionario di zona
