Escavatori cingolati

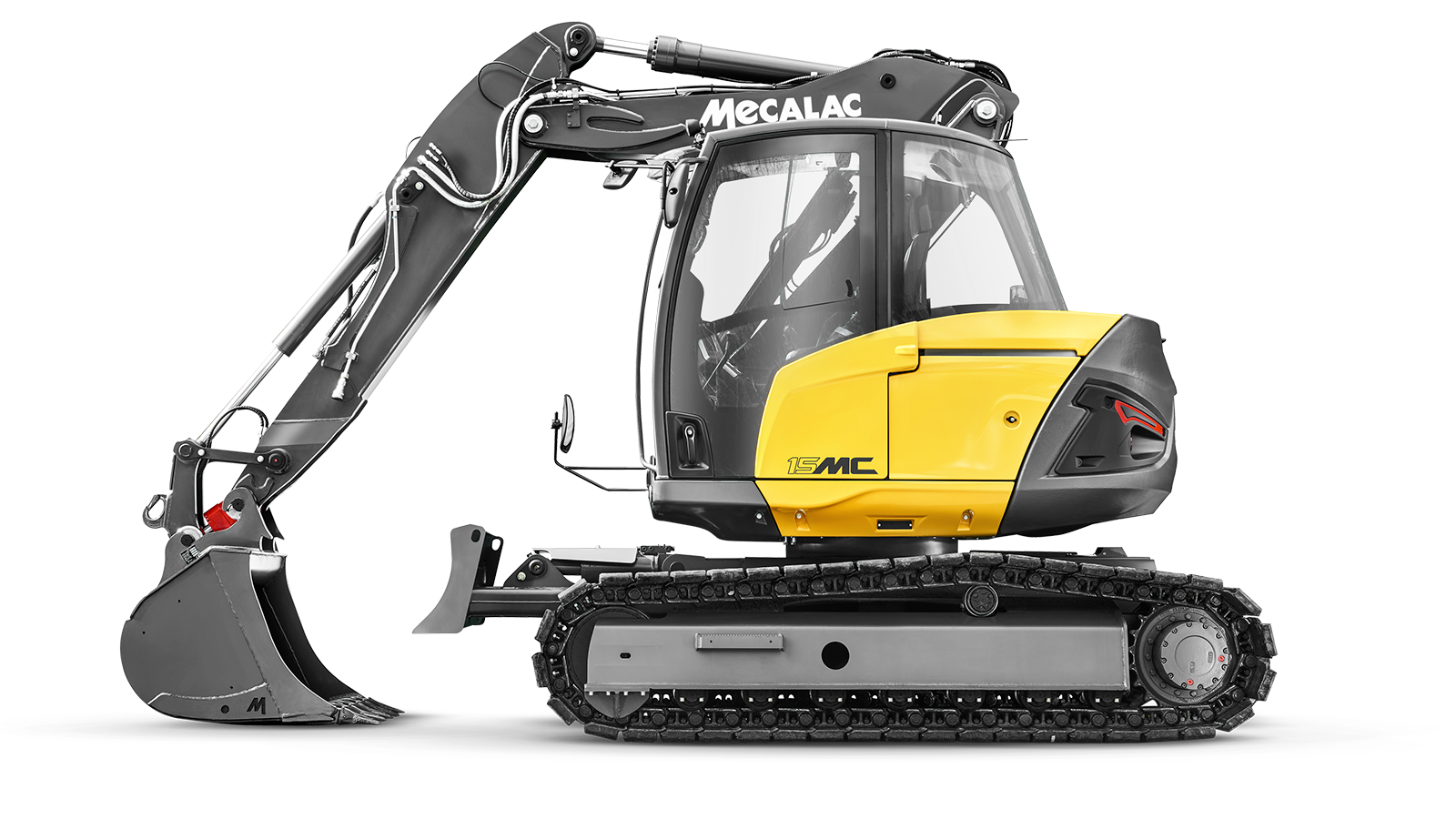

The new 15MC, is a compact and powerfull excavator that can work as close to the tracks as possible while providing an exceptional working range of 9 m. It benefits from the latest Mecalac patents for interior and exterior technologies. Equipped with a 100 kW engine, it is the most powerful machine in its class. Discover now the new tracked excavator “made in Mecalac”.
Caratteristiche
Massa operativa a vuoto | 14780 kg (32,584 lb) / 15430 kg (34,017 lb) | |
---|---|---|
Raggio posteriore | 1570 mm (5’2”) | |
Potenza (kW/cv) | 100 kW (136 hp - 134 imperial hp) | |
Velocità di spostamento | 6 km/h (3.7 mph) | |
Larghezza fuori tutto | 2500 mm (8’2”) | |
Forza di strappo / Escavatore | 8170 daN (18,370 lbf) | |

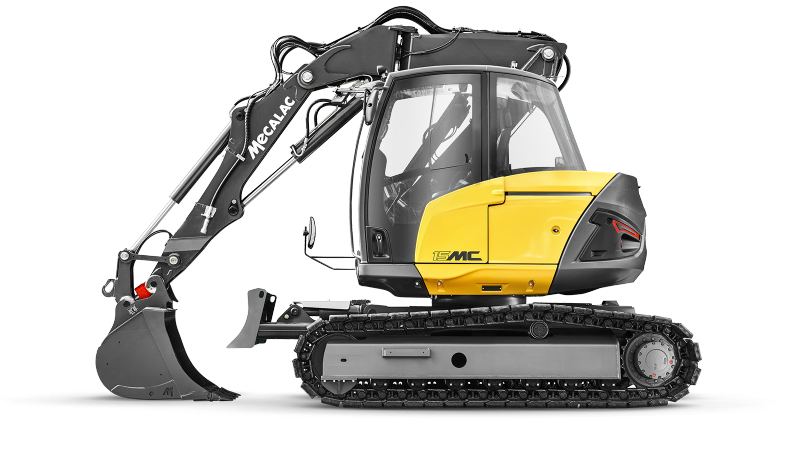

Con Euquipaggiamento polivalento Mecalac | ||
- Rotazione | 3415 mm (11’2”) | |
- Forza di penetrazione | 5500 daN (12,360 lbf) | |
- Profondità massima | - 4730 mm (-15’6”) | |
Con Euquipaggiamento retro escavatore | ||
- Rotazione | 2990 mm (9’7”) | |
- Forza di penetrazione | 6200 daN (13,940 lbf) | |
- Profondità massima | - 4980 mm (-16’4”) | |

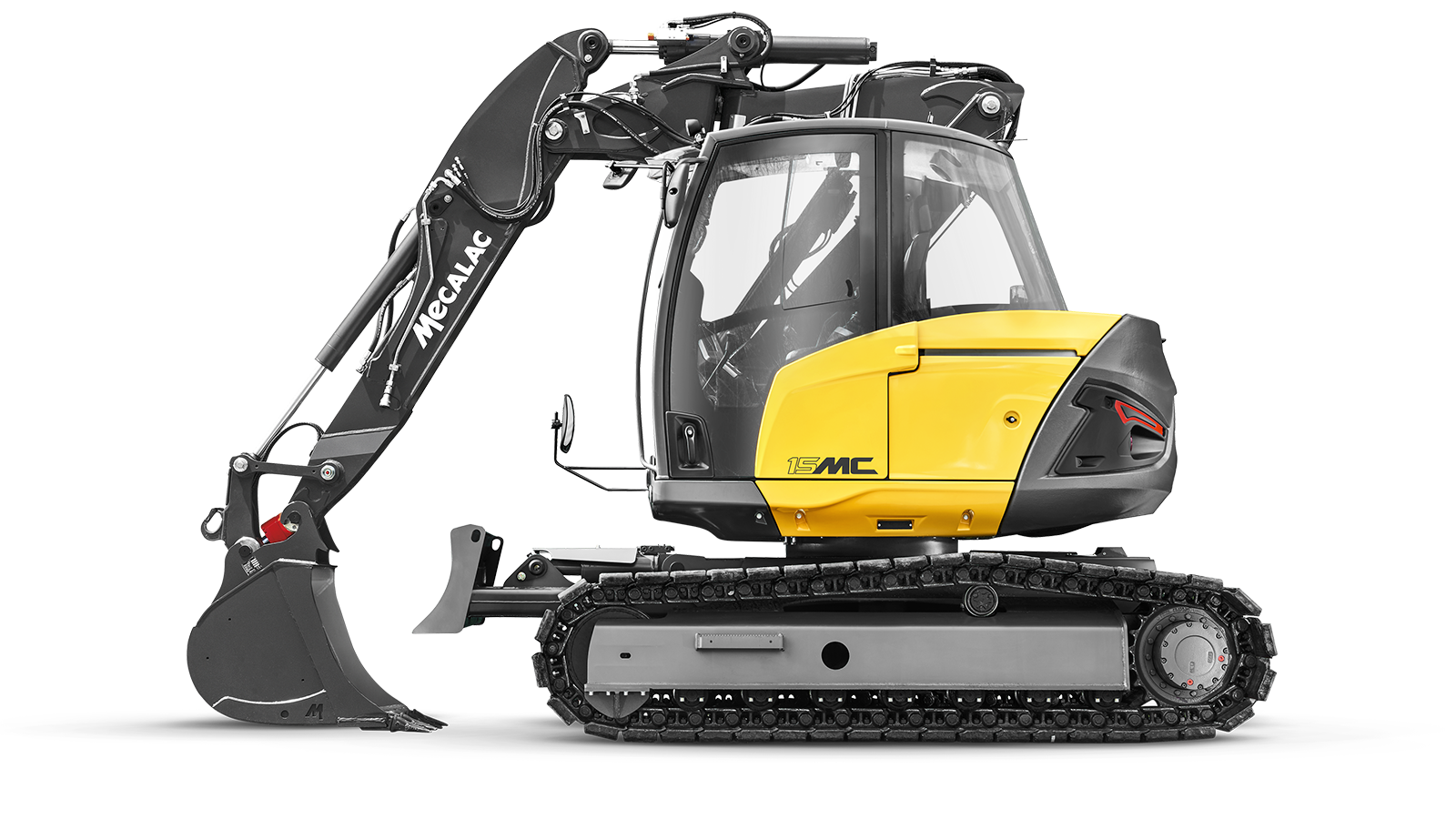

Con Equipaggiamento retro escavatore con deporte | ||
- Rotazione | 2990 mm (9’7”) | |
- Forza di penetrazione | 6200 daN (13,940 lbf) | |
- Profondità massima | - 4880 mm (16’) |
