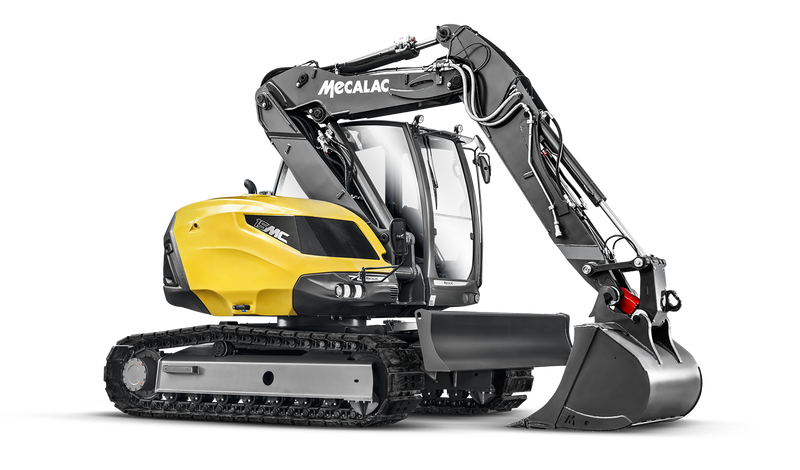

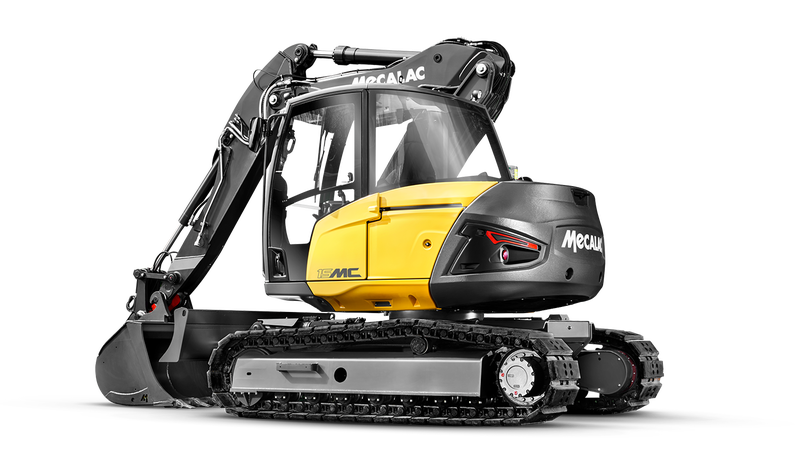

The new 15MC, is a compact and powerfull excavator that can work as close to the tracks as possible while providing an exceptional working range of 9 m. It benefits from the latest Mecalac patents for interior and exterior technologies. Equipped with a 100 kW engine, it is the most powerful machine in its class. Discover now the new tracked excavator “made in Mecalac”.
15MC in action
Specifications
| Total operating weight | 14780 kg (32,584 lb) / 15430 kg (34,017 lb) | |
|---|---|---|
| Engine power | 100 kW (136 hp - 134 imperial hp) | |

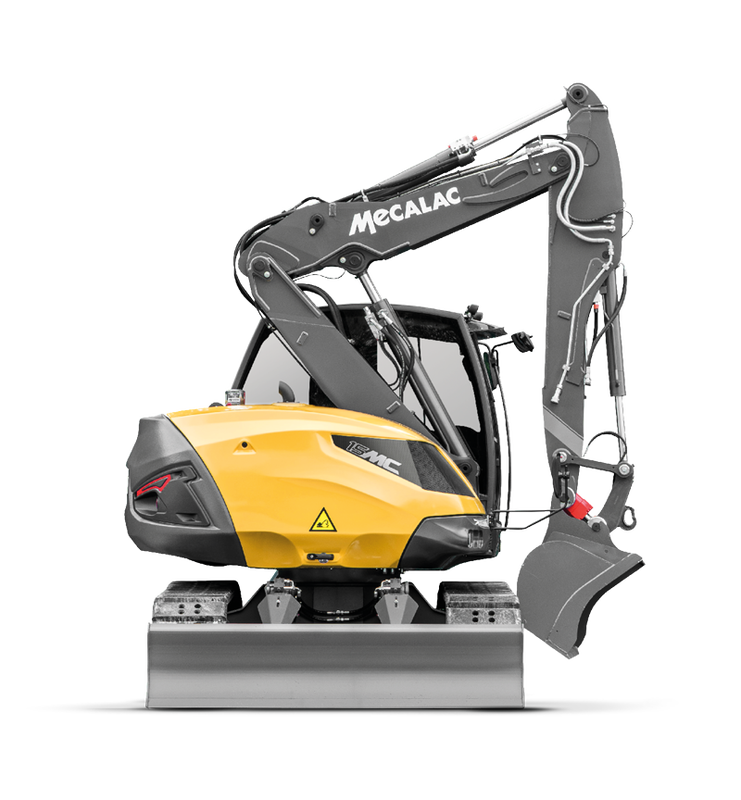

| Tail swing radius | 1570 mm (5’2”) | |
| Travel speed | 6 km/h (3.7 mph) | |
| Overall width | 2500 mm (8’2”) | |

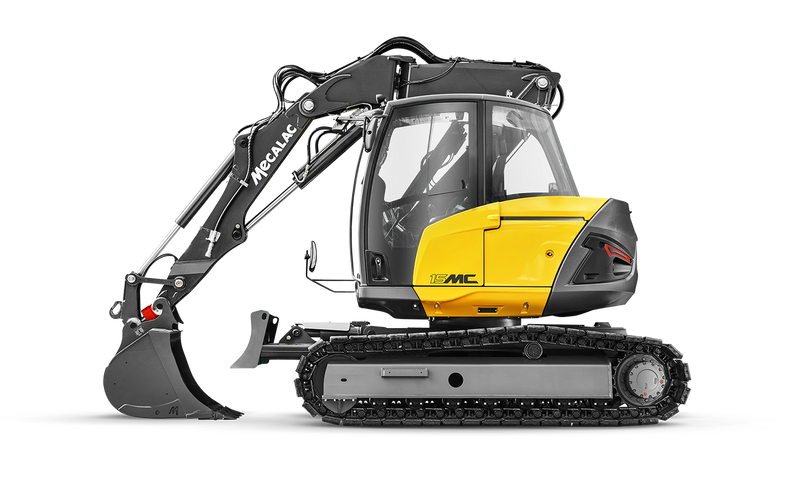

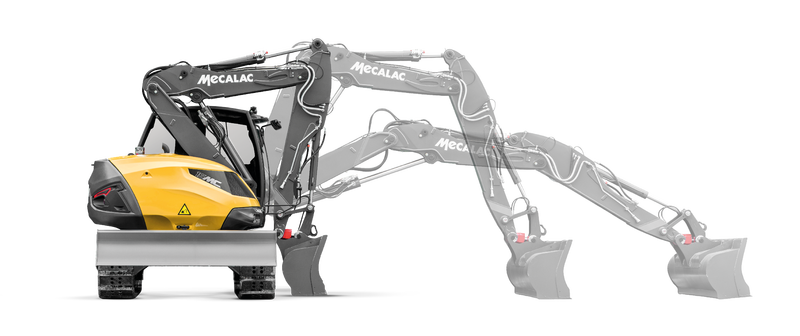

| With versatile Mecalac attachment | ||

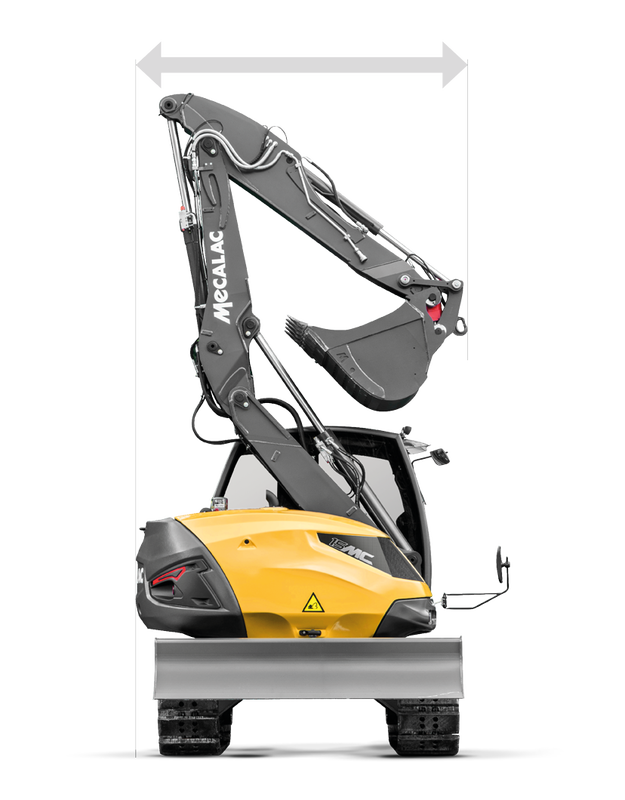

| - Turning width | 3415 mm (11’2”) | |
| - Tear-out force | 5500 daN (12,360 lbf) | |

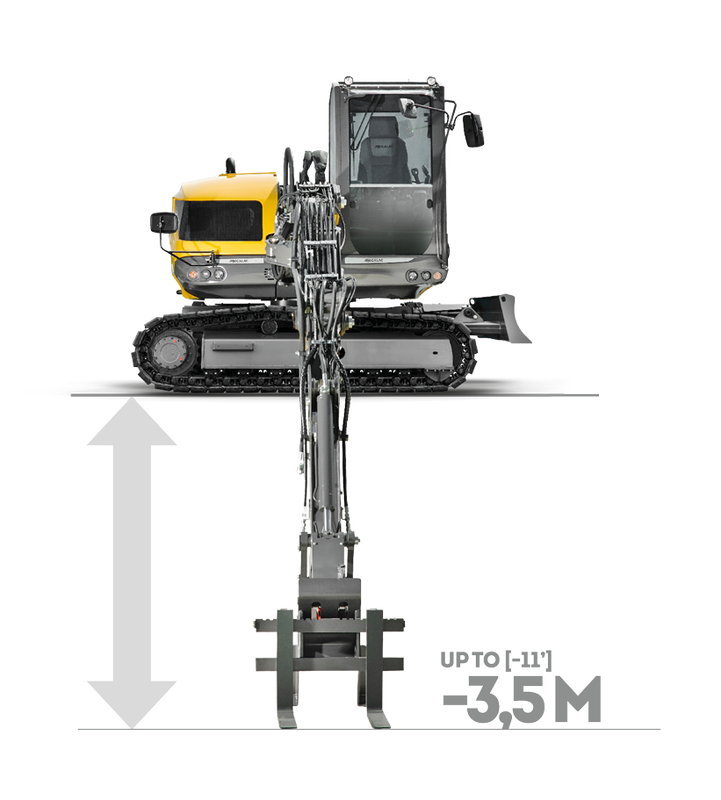

| - Max. depth | - 4730 mm (-15’6”) | |

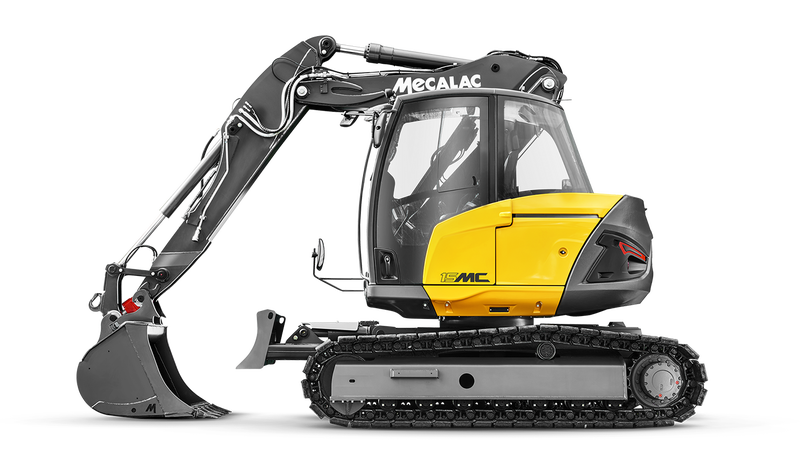

| With Two-piece boom attachment | ||
| - Turning width | 2990 mm (9’7”) | |
| - Tear-out force | 6200 daN (13,940 lbf) | |
| - Max. depth | - 4980 mm (-16’4”) | |

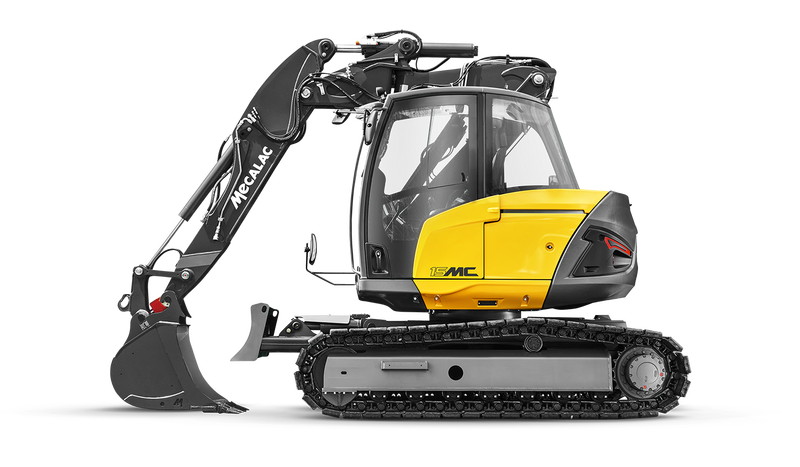

| With Offset Two-piece boom attachment | ||
| - Turning width | 2990 mm (9’7”) | |
| - Tear-out force | 6200 daN (13,940 lbf) | |
| - Max. depth | - 4880 mm (16’) |
