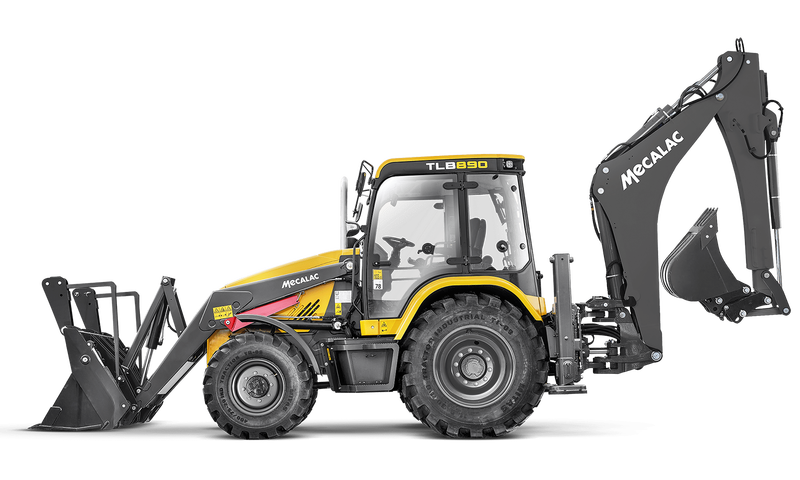

Backhoe Loaders - Sideshift TLB890


Extra power – greater flexibility

Designed around the needs of the owner operator, the TLB890 backhoe loader is a powerhouse of productivity delivering impressive levels of reach and dig depth with fast cycle times and greater economy. A heavyweight in terms of productivity with high breakout forces and lifting capabilities, the TLB890 backhoe loader is ideally suited to the widest range of applications including civil engineering, highway construction & maintenance, utilities and agriculture. Delivering faster cycle times and greater economy while returning a high residual value, the TLB890 backhoe loader helps your business increase its return on investment.

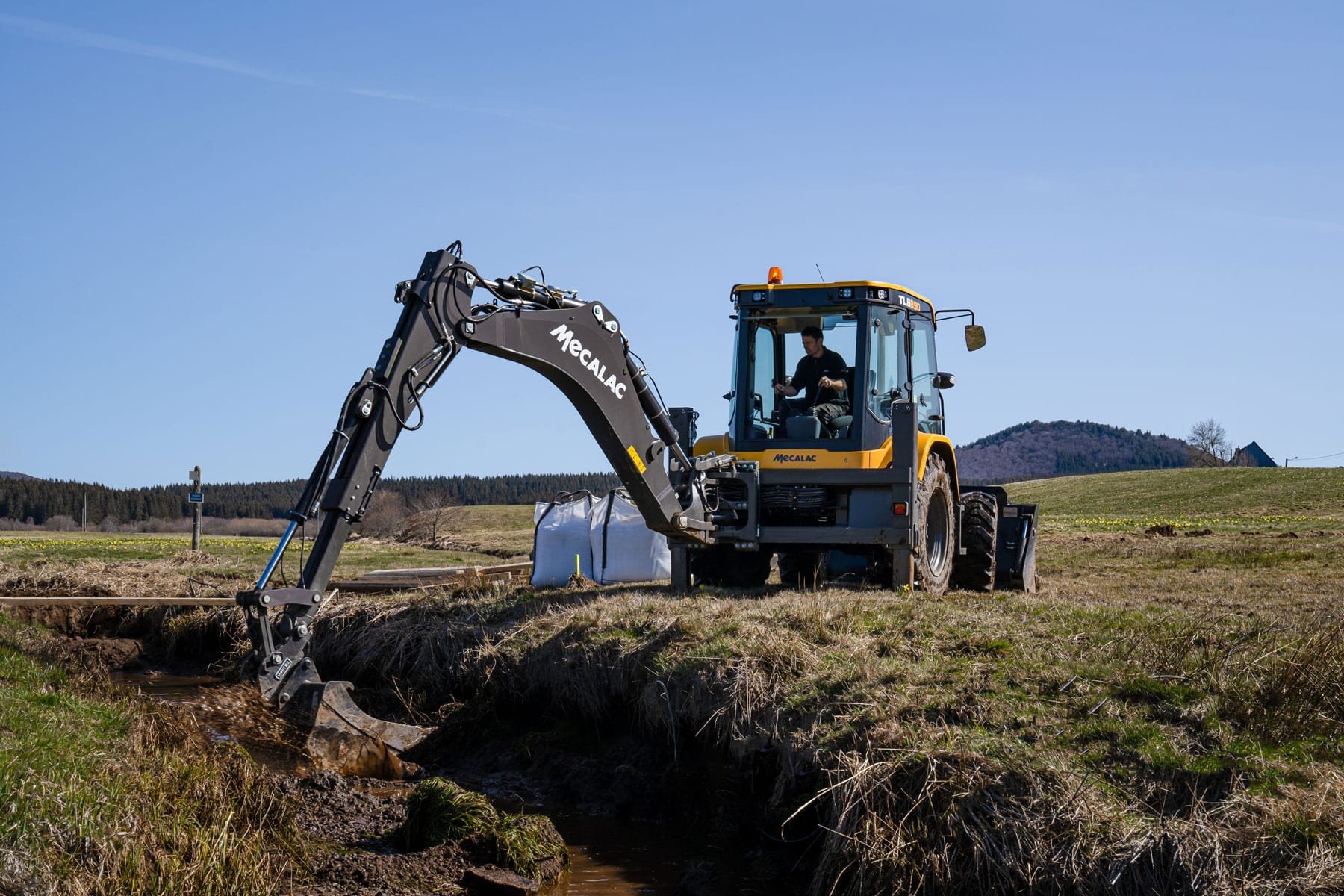

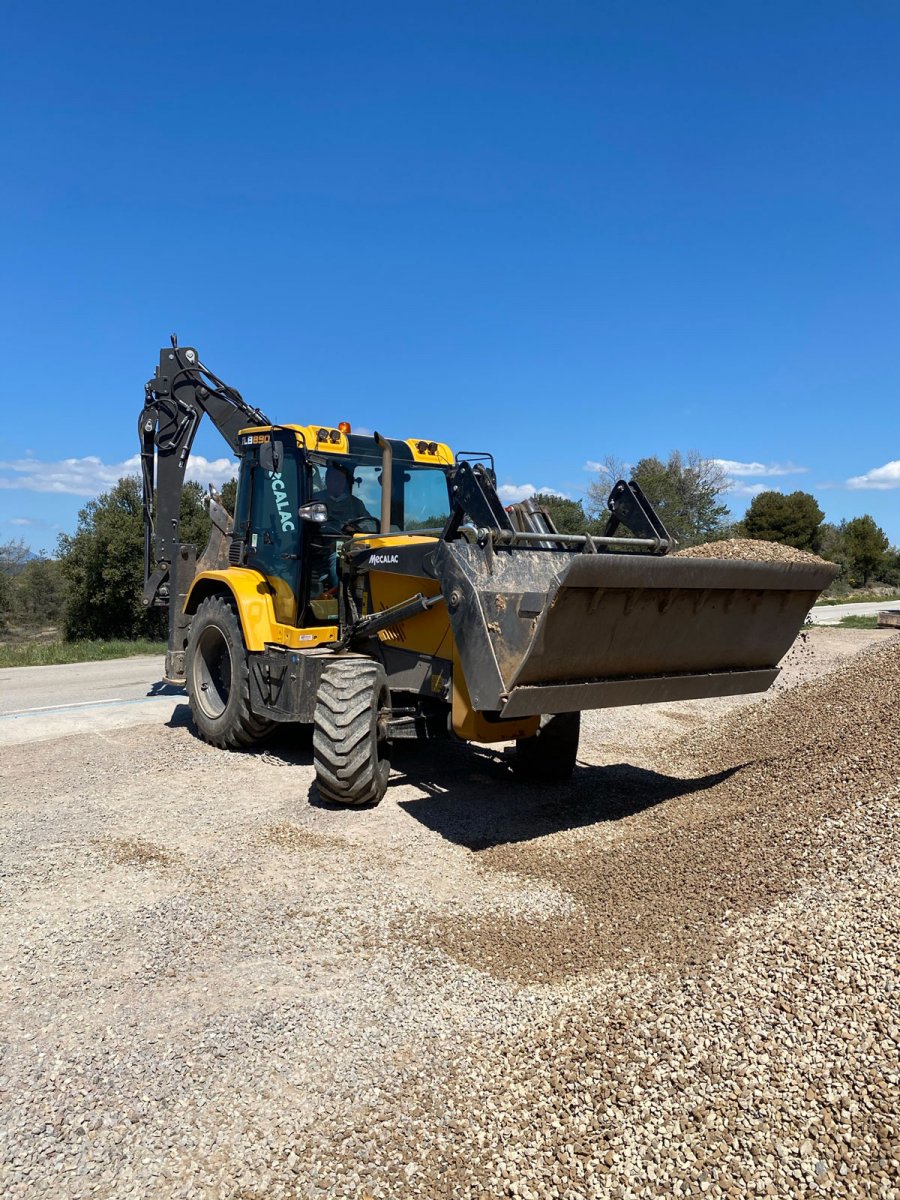

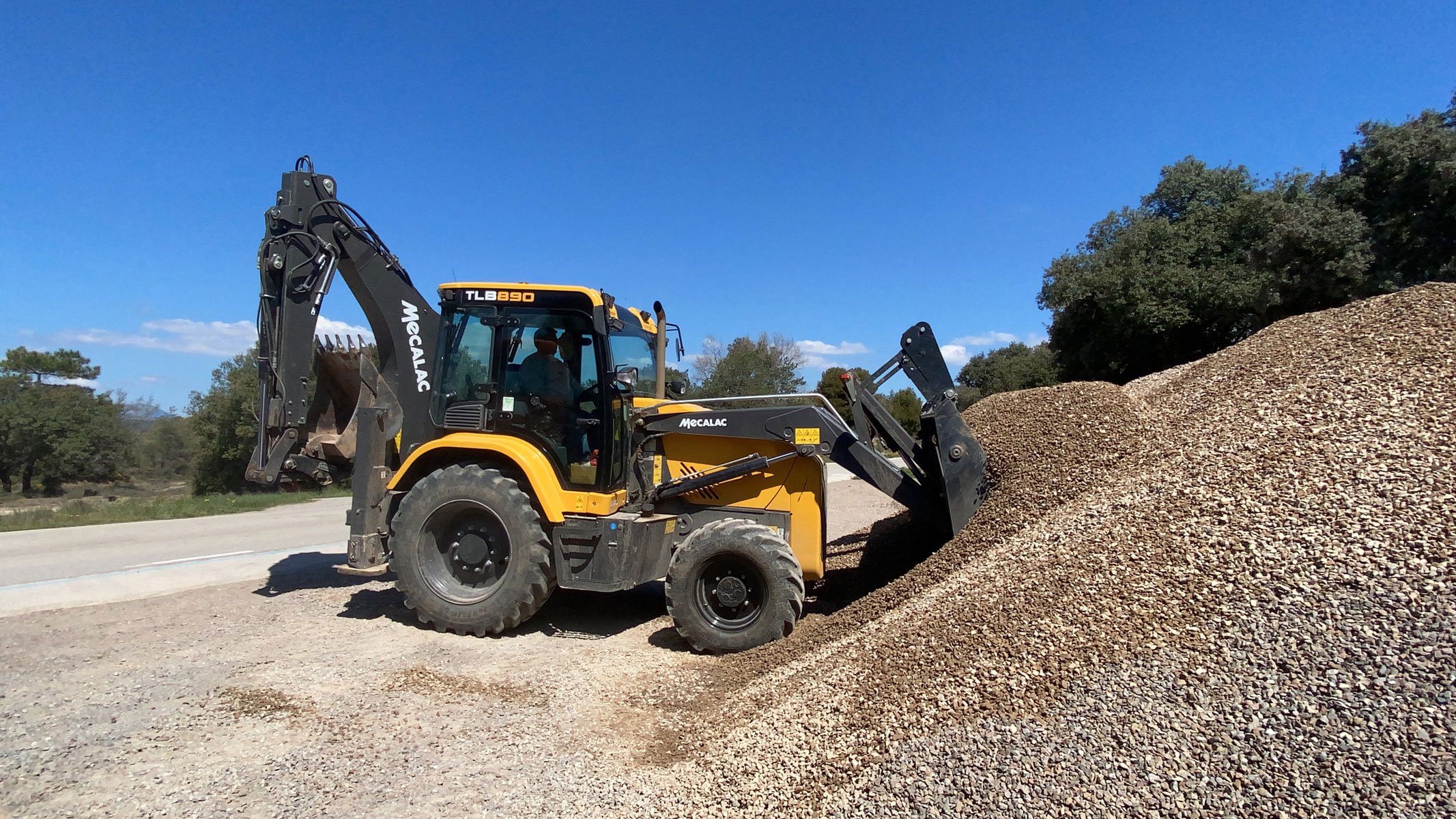

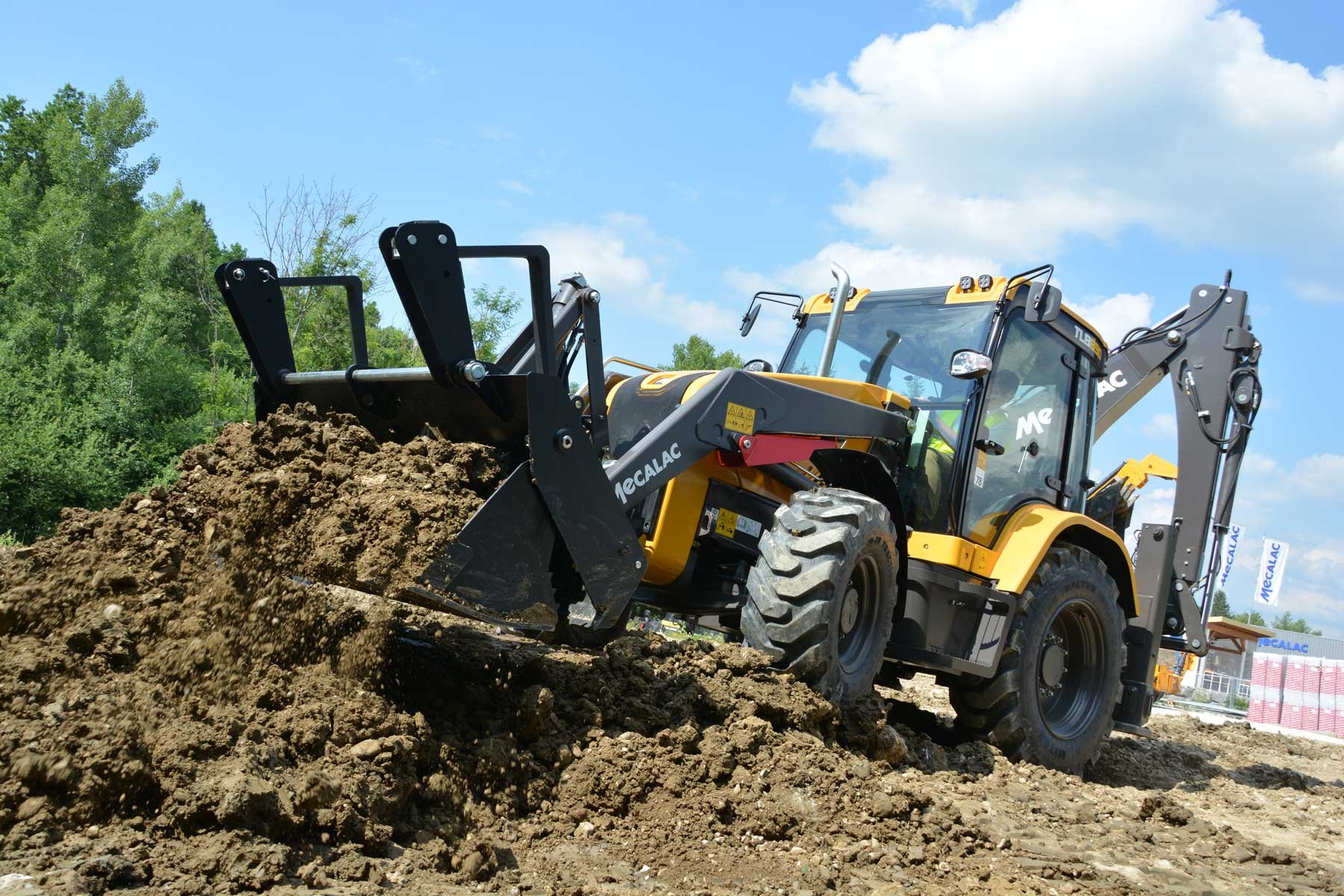

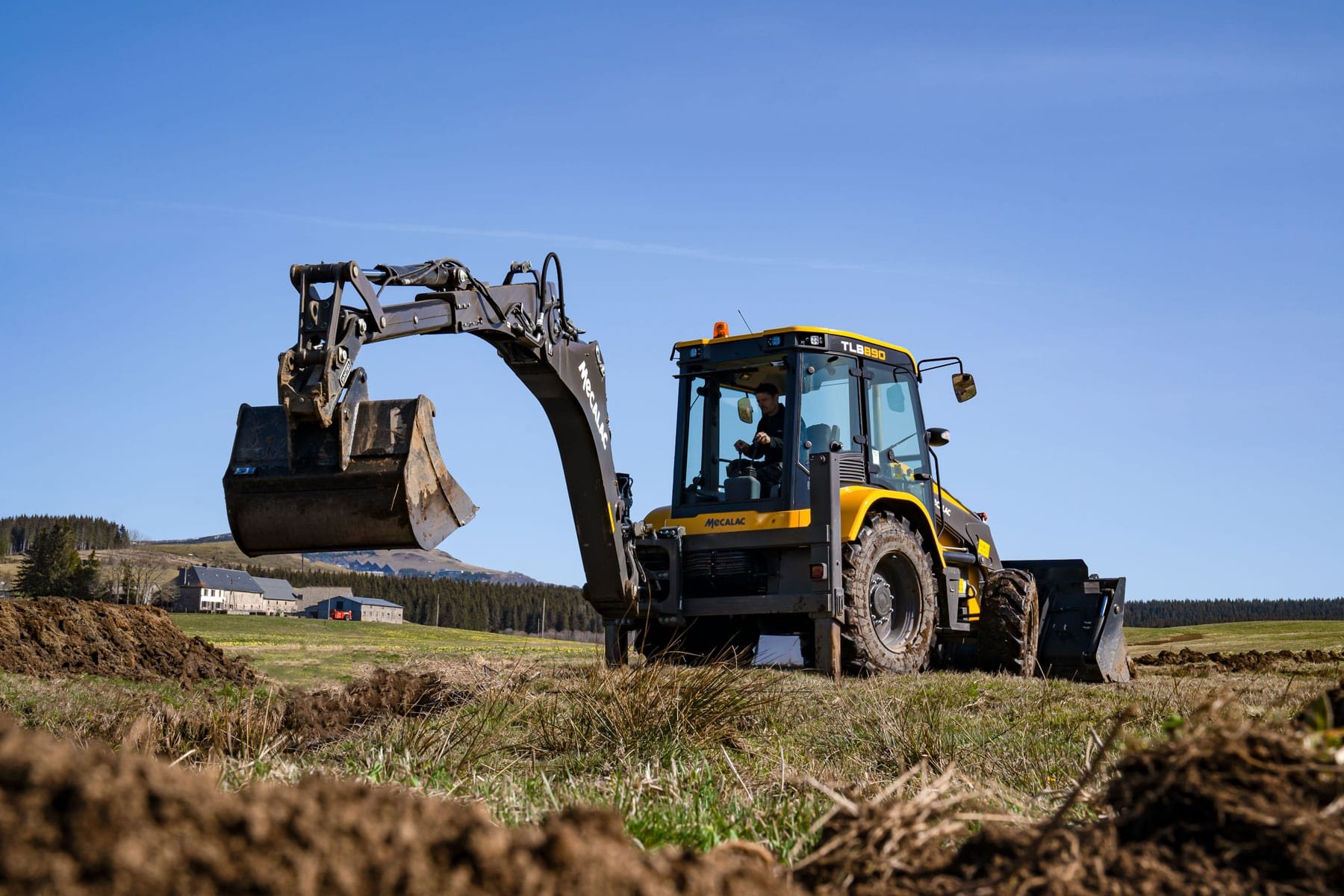

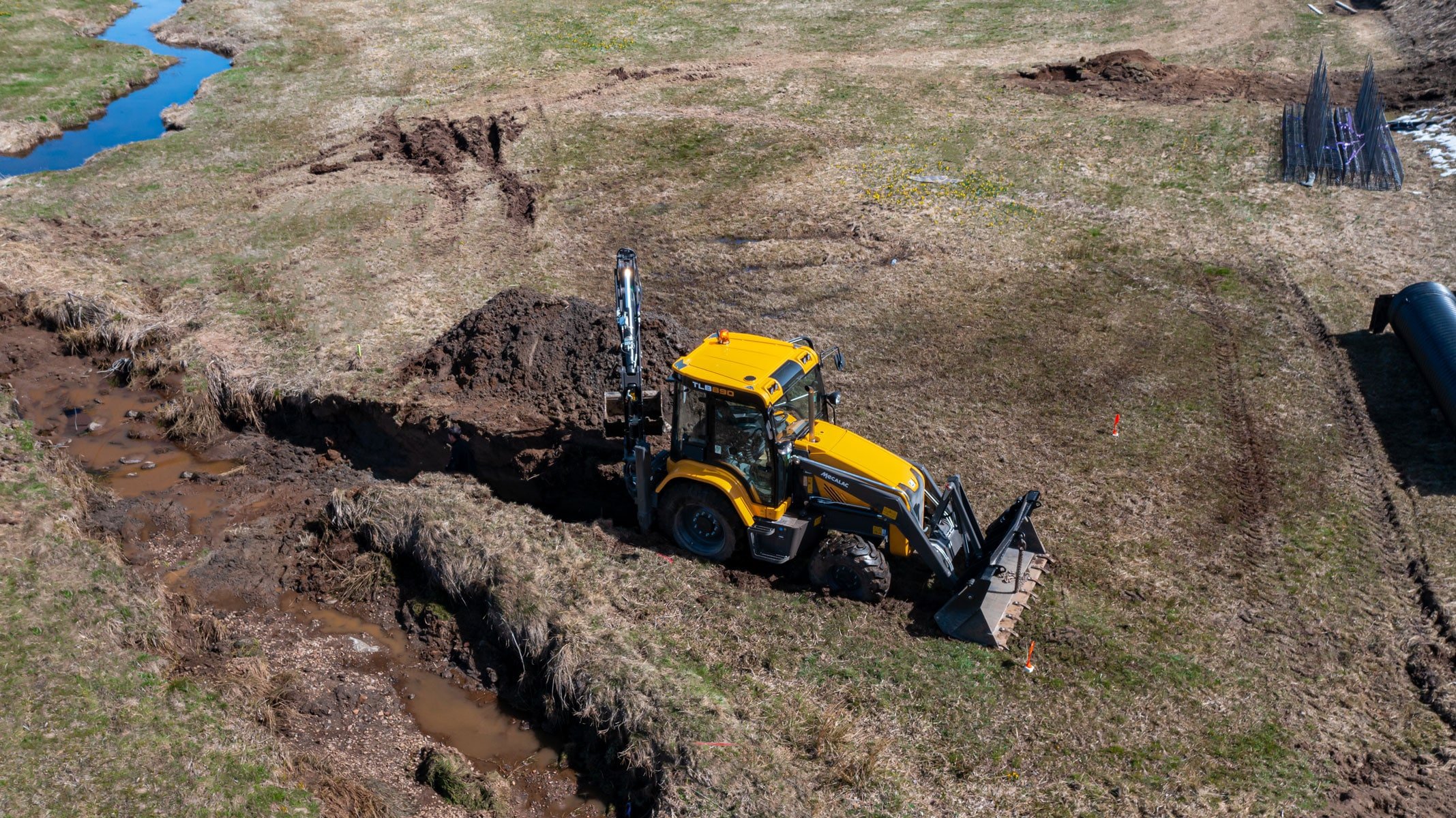

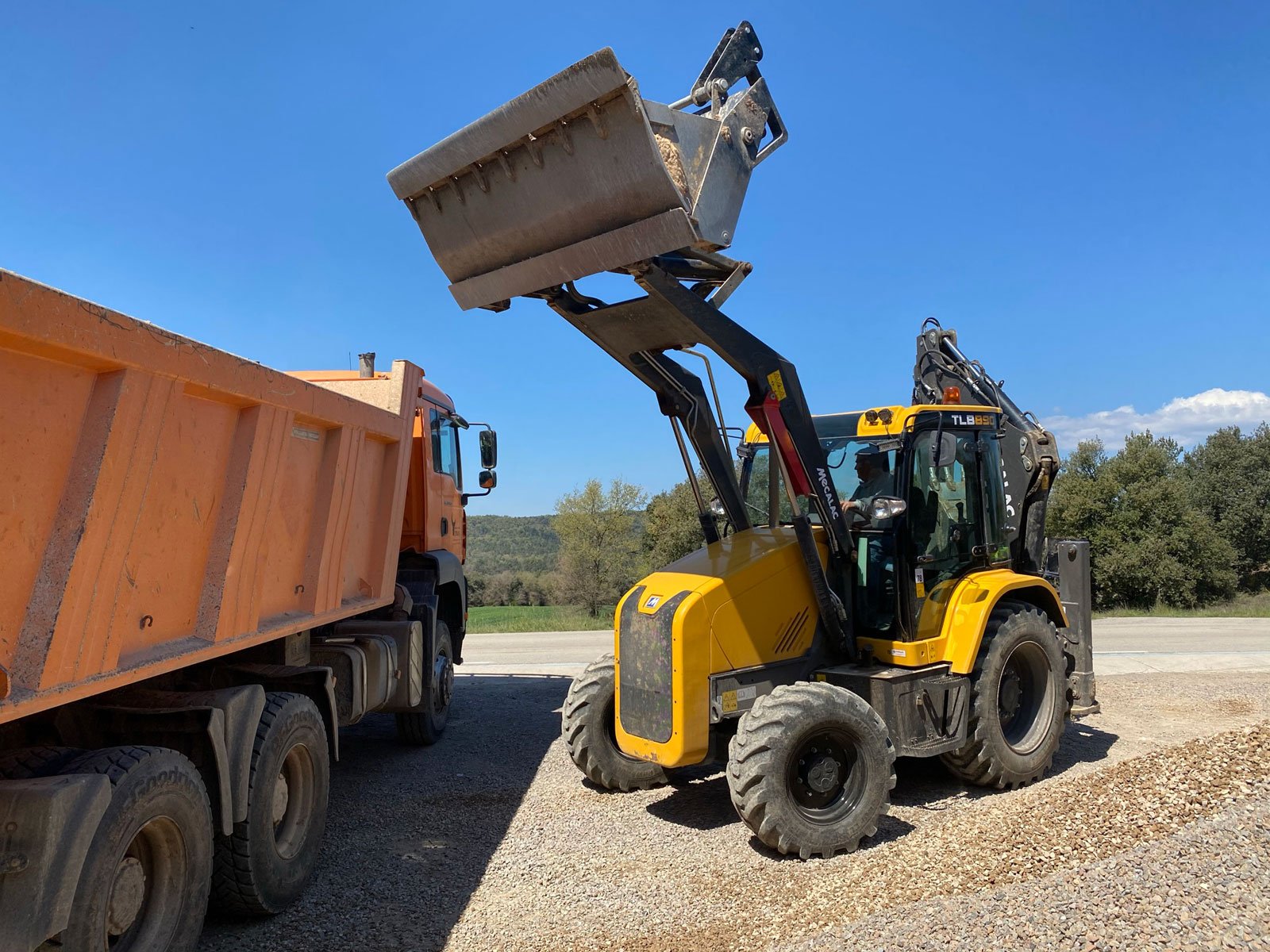

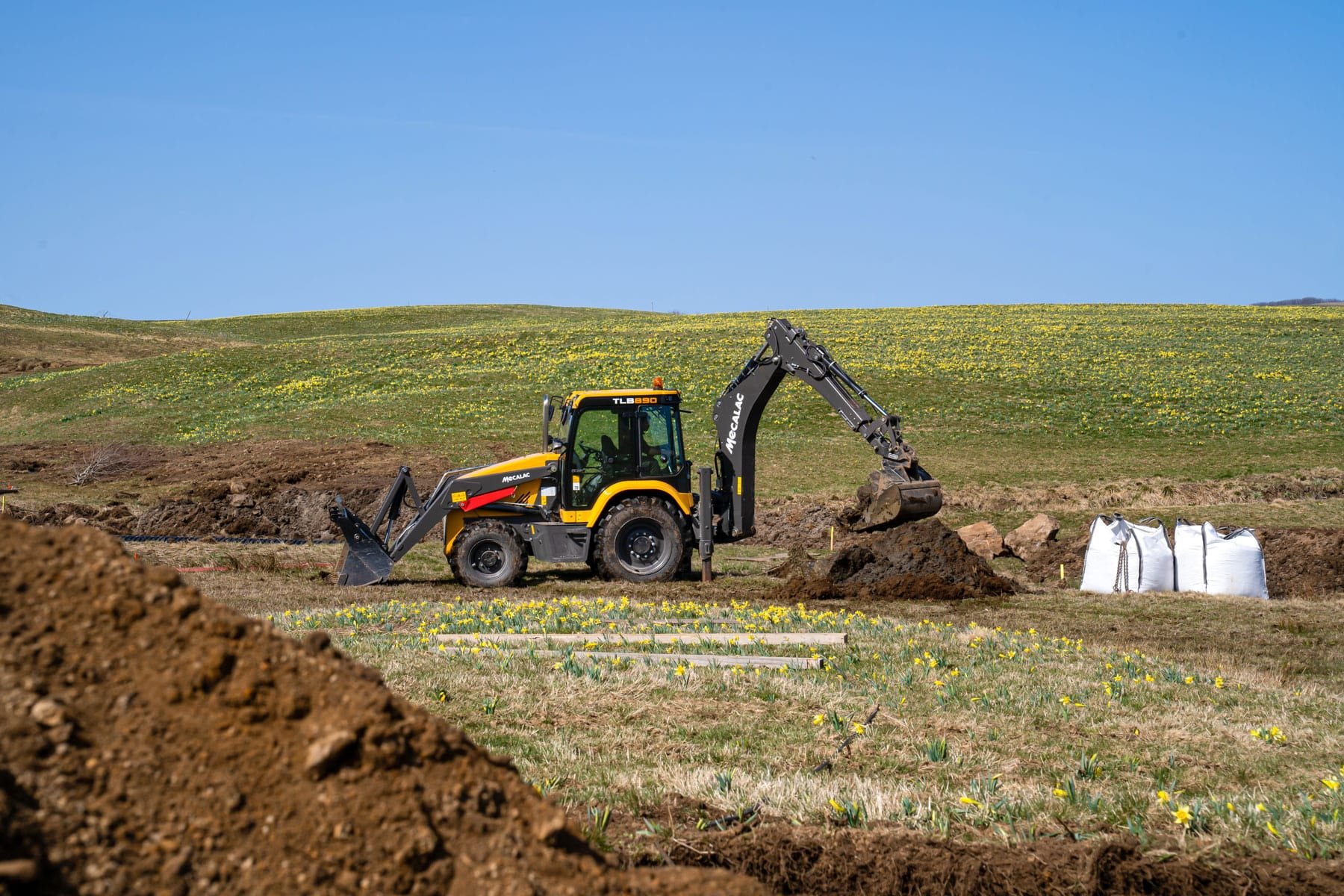

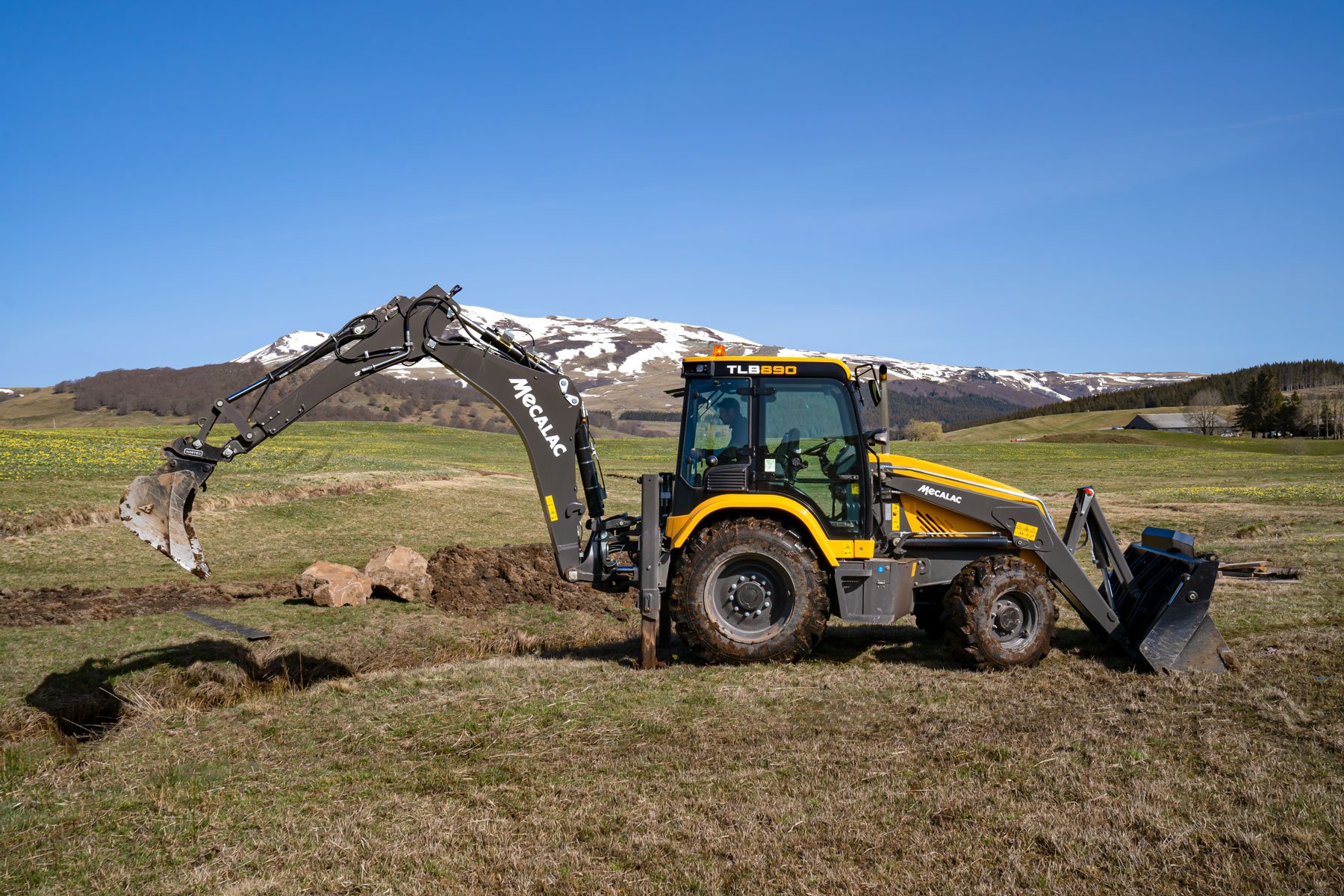

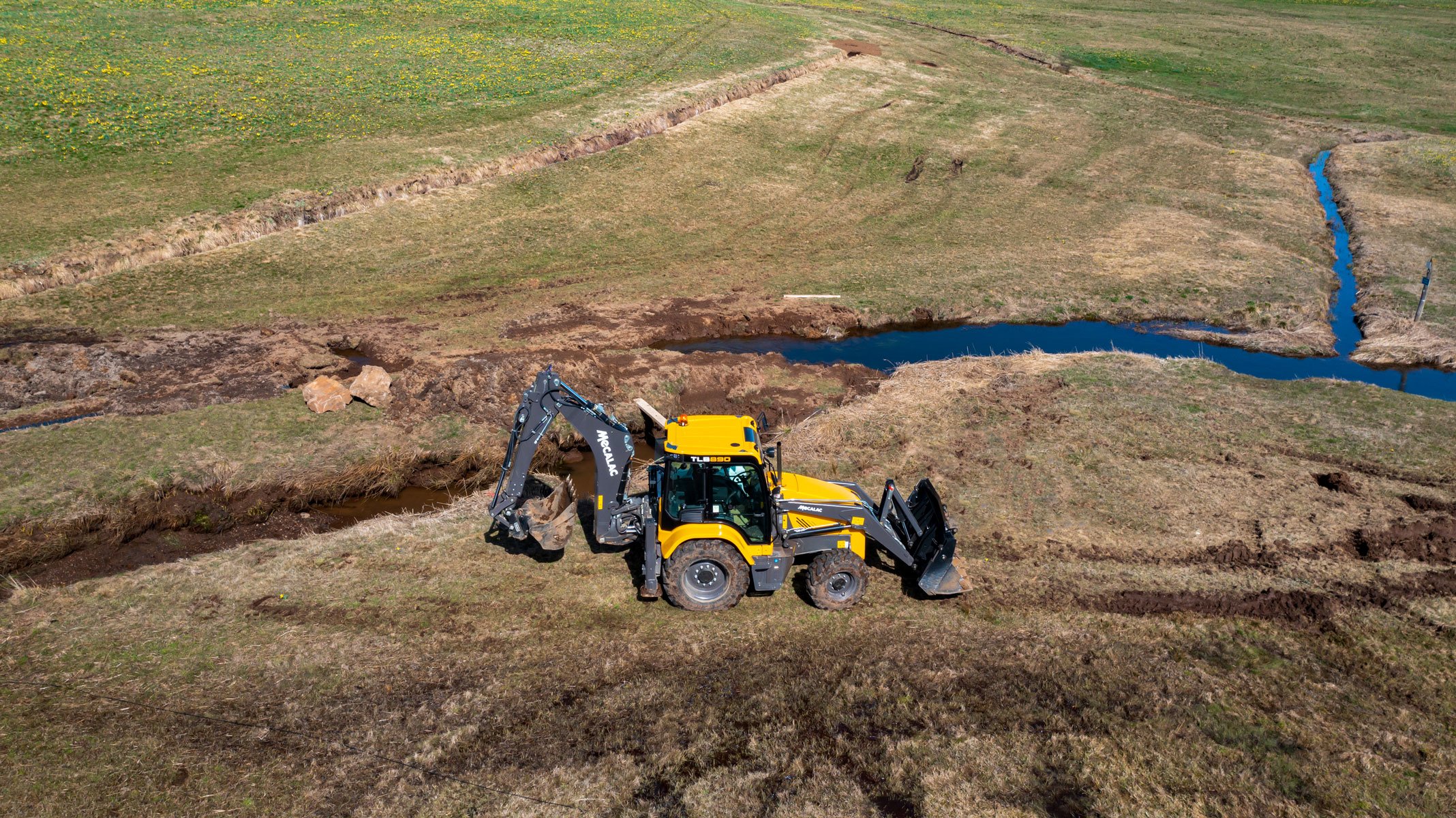

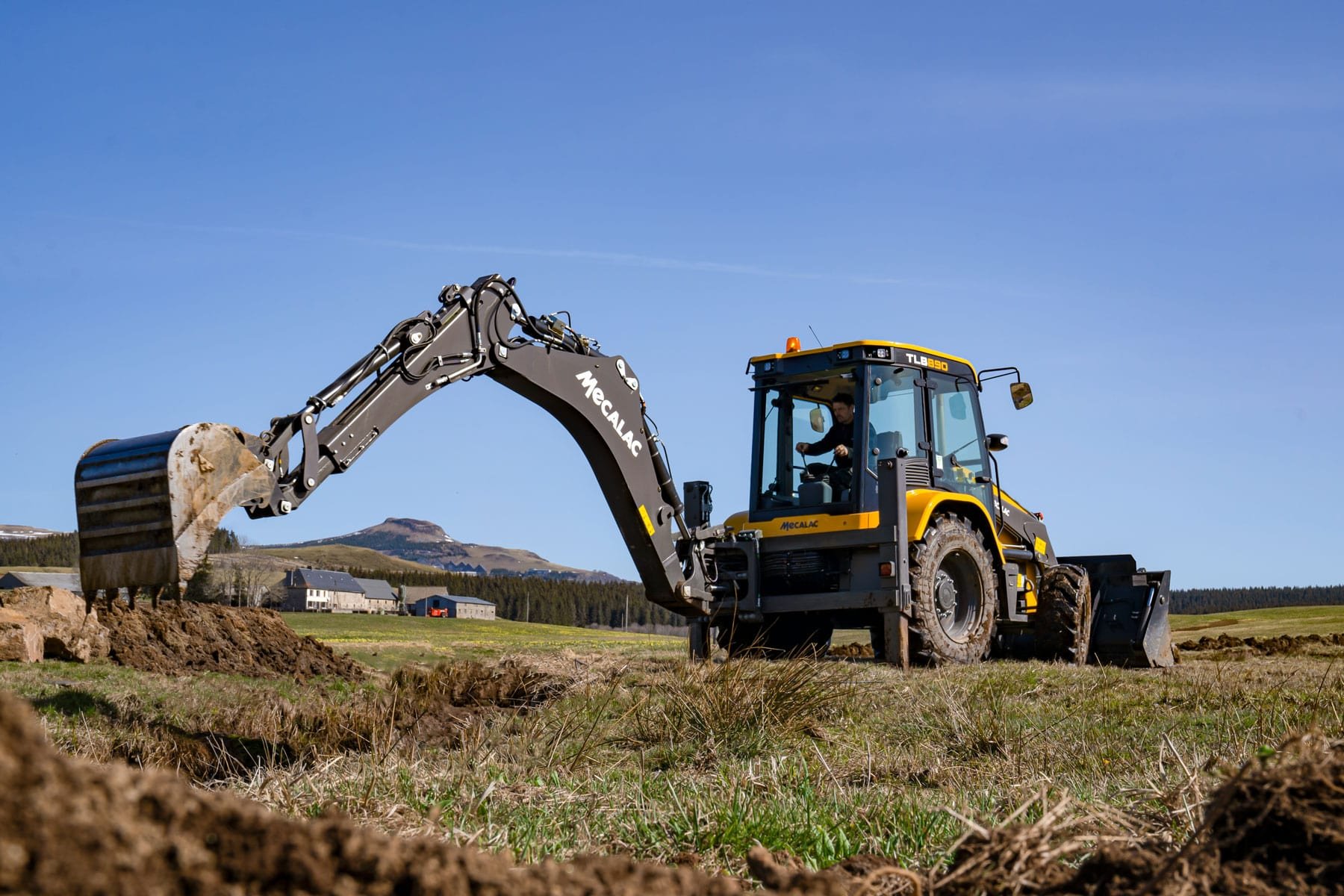

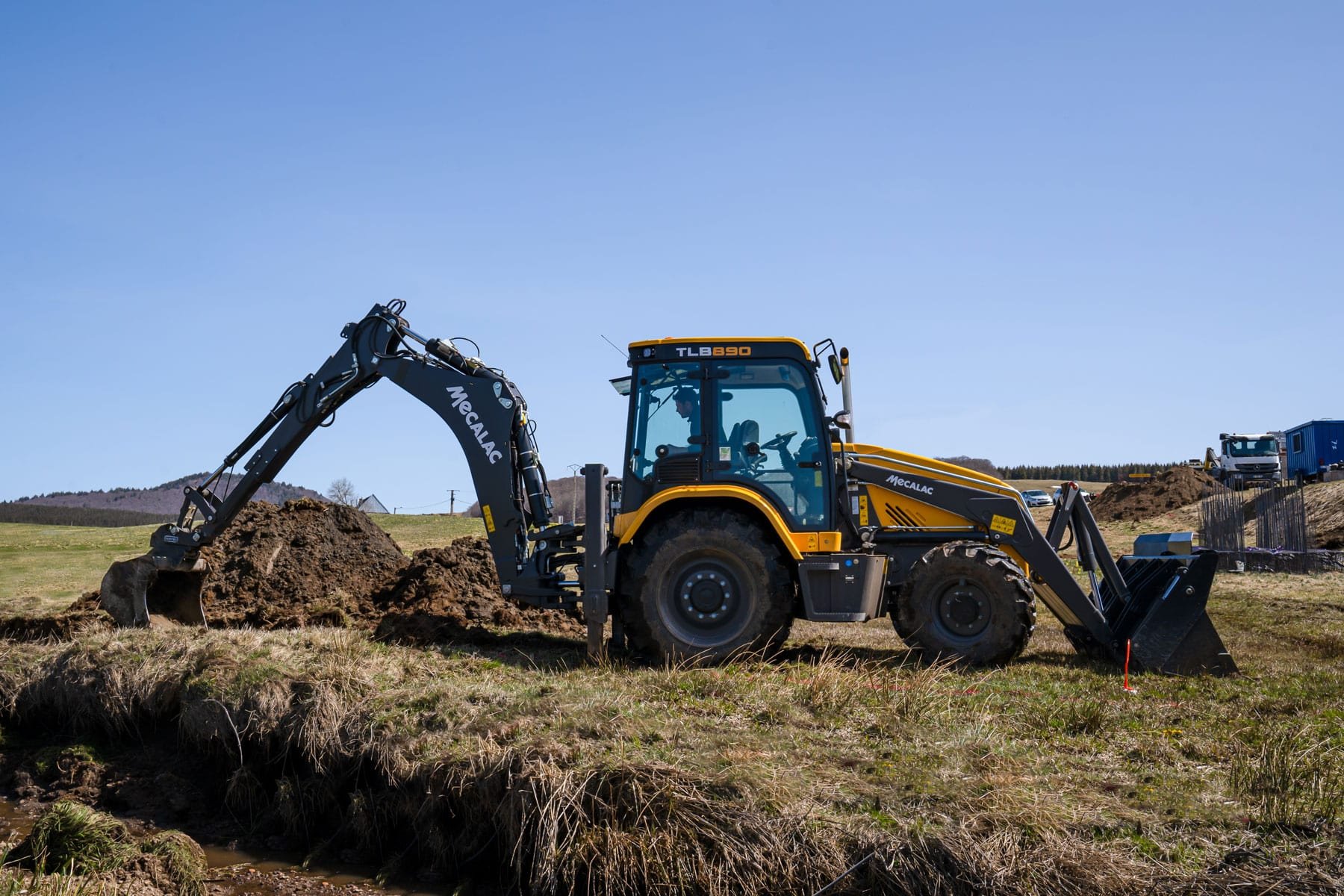

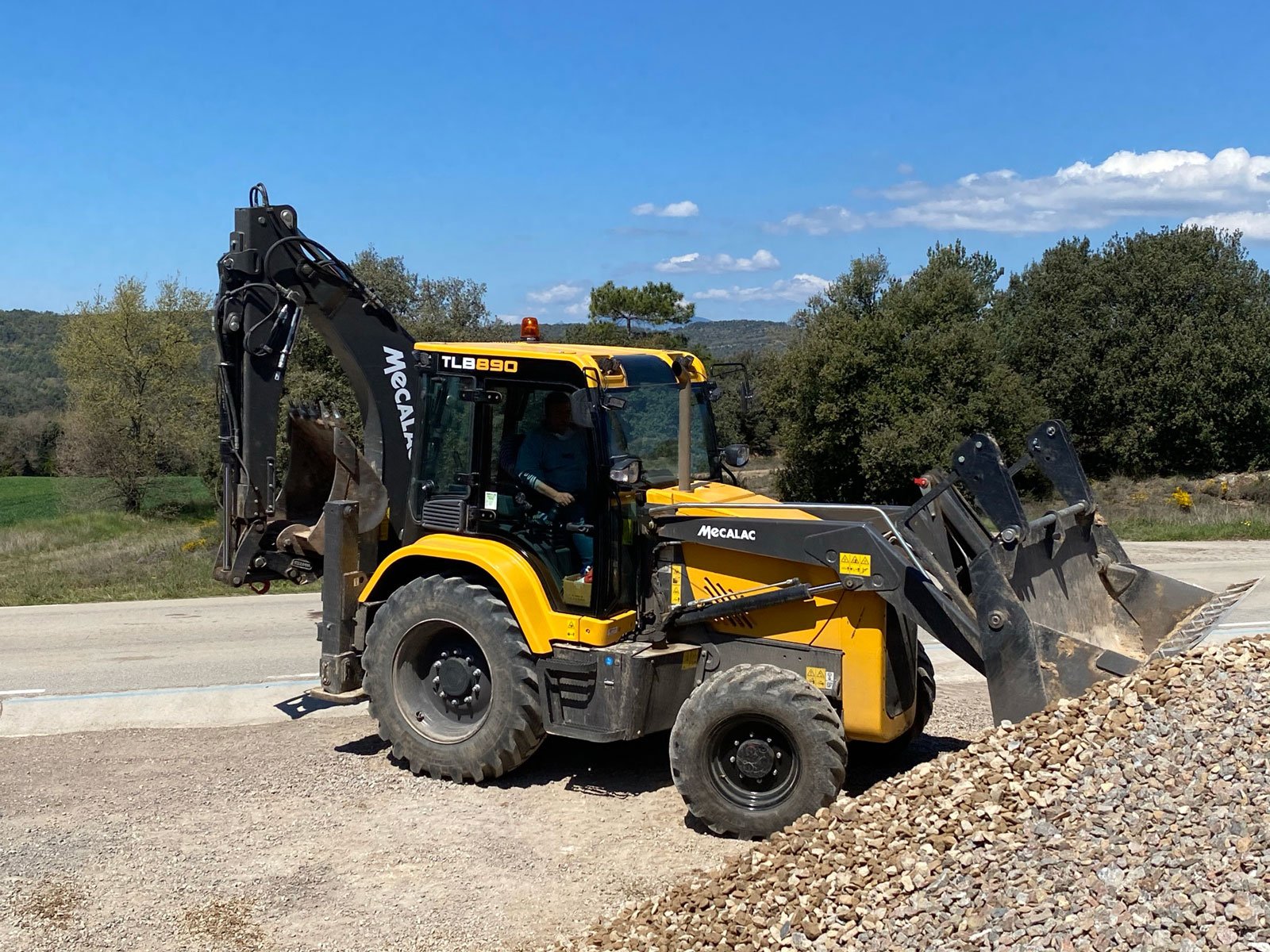

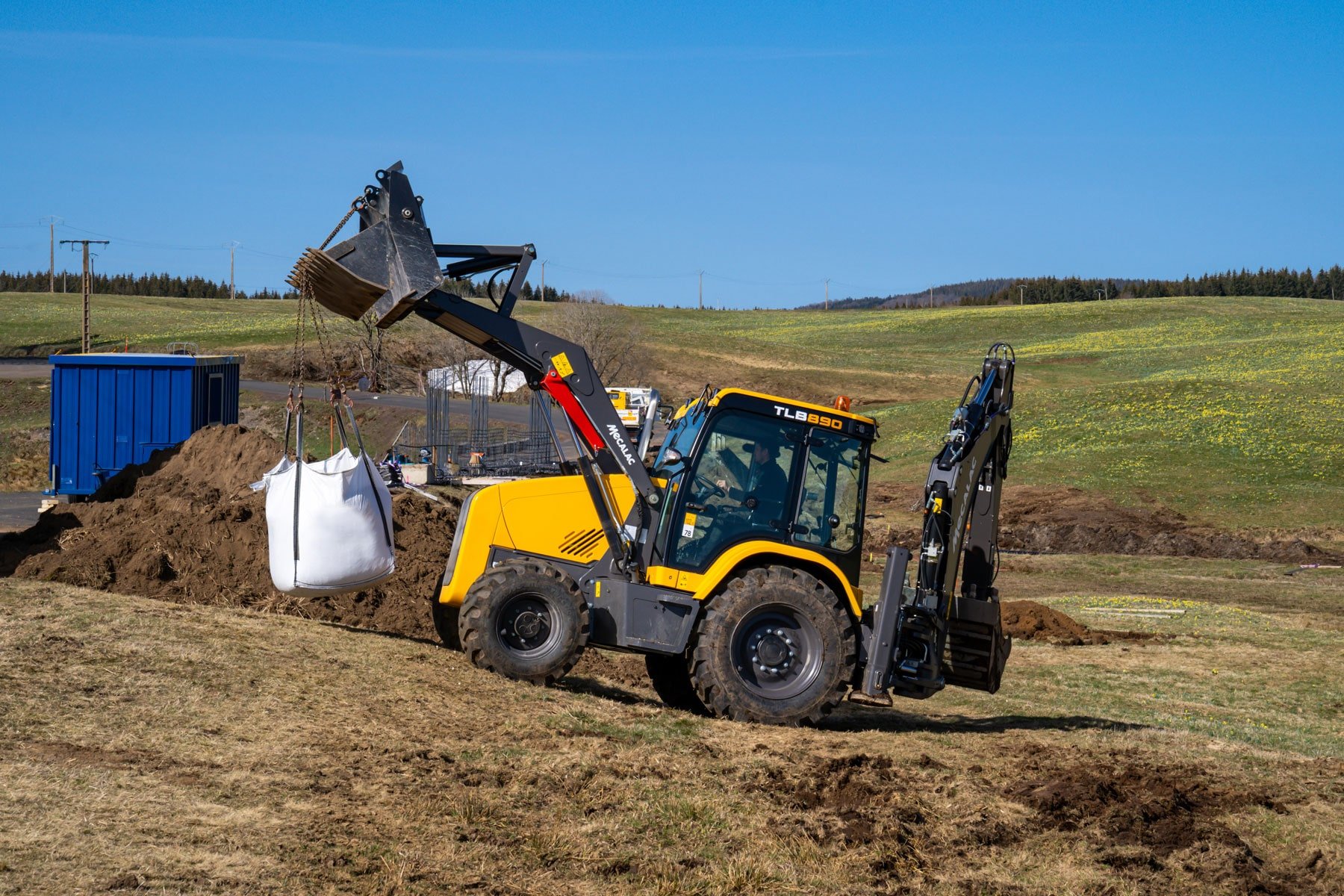

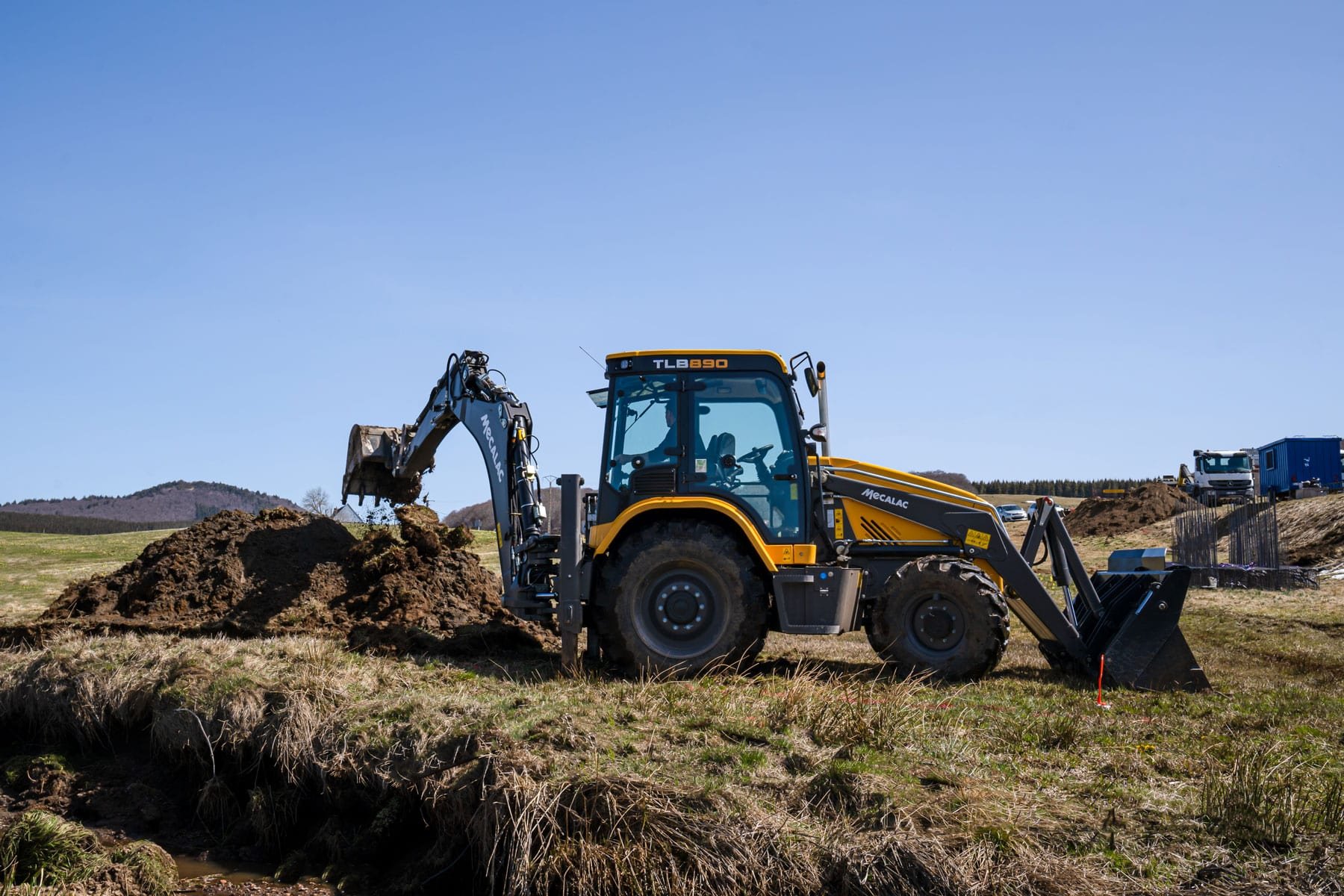

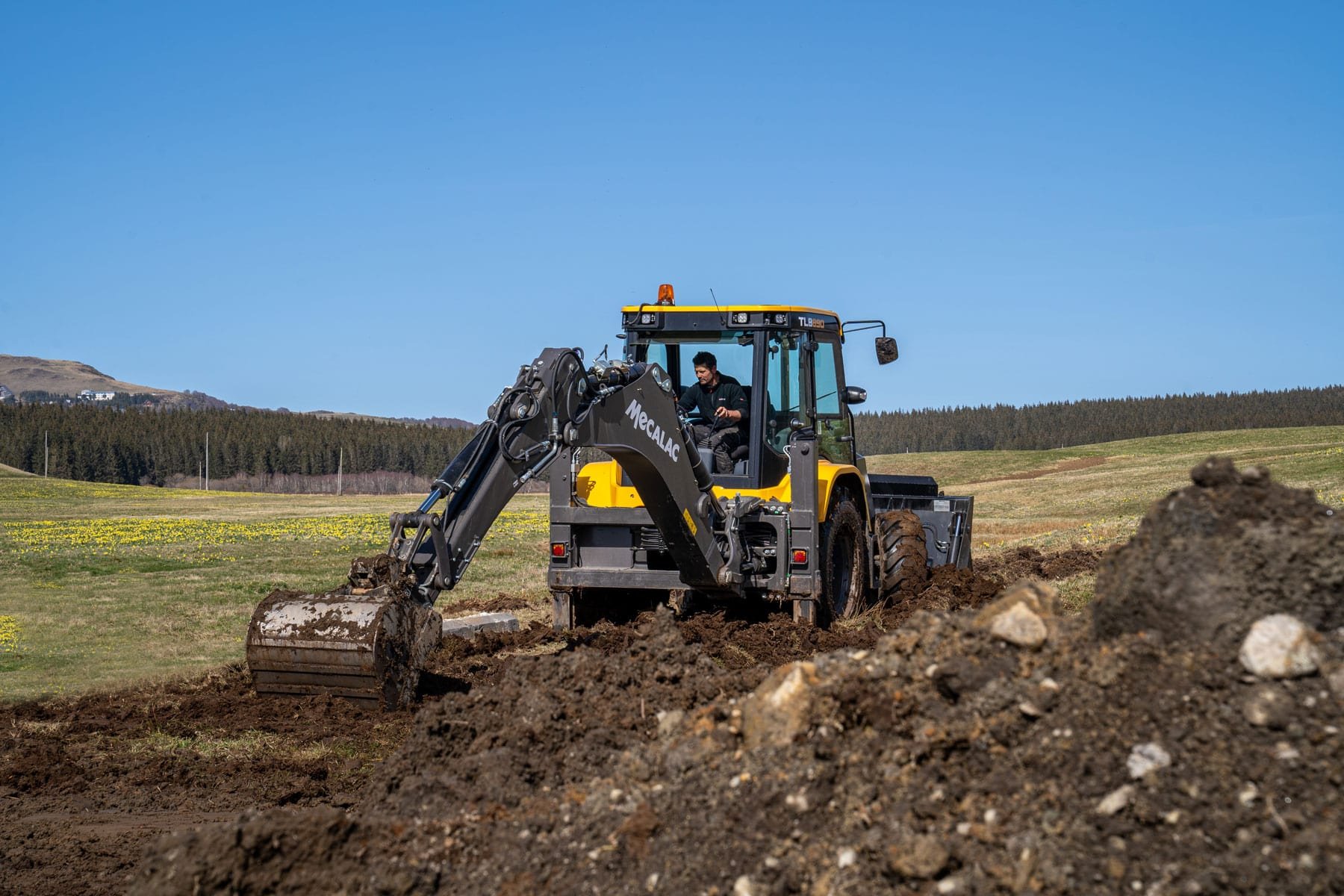

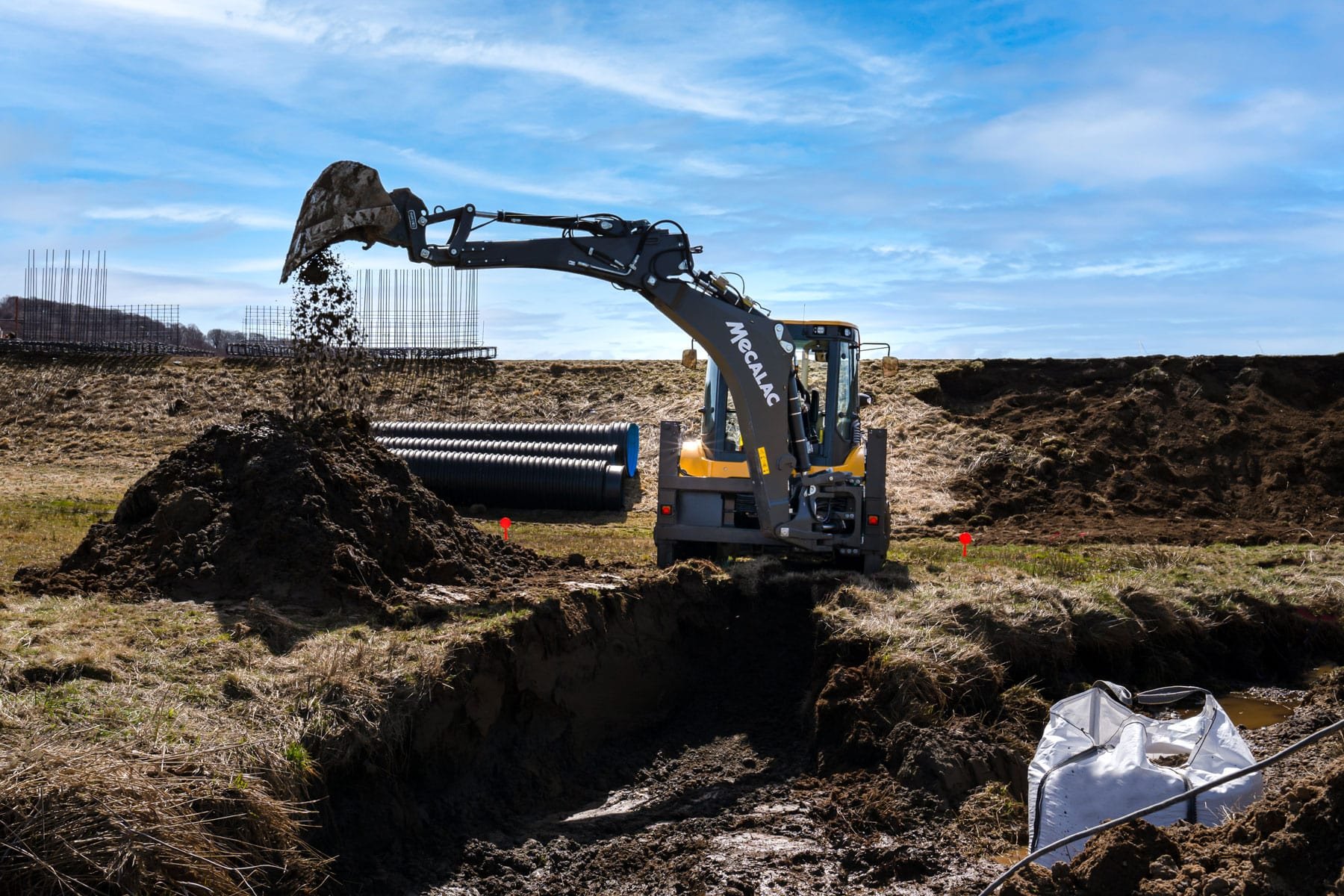

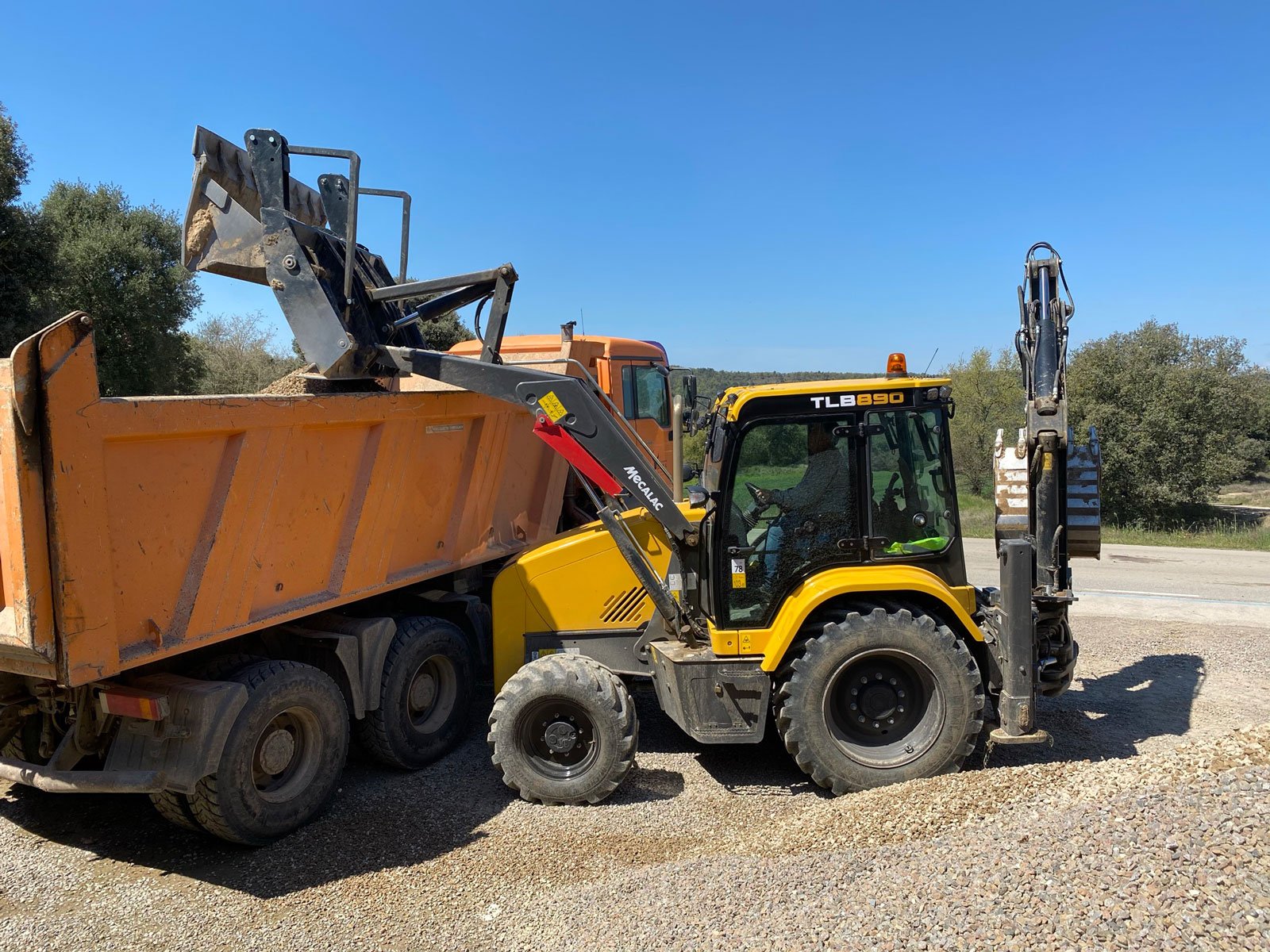

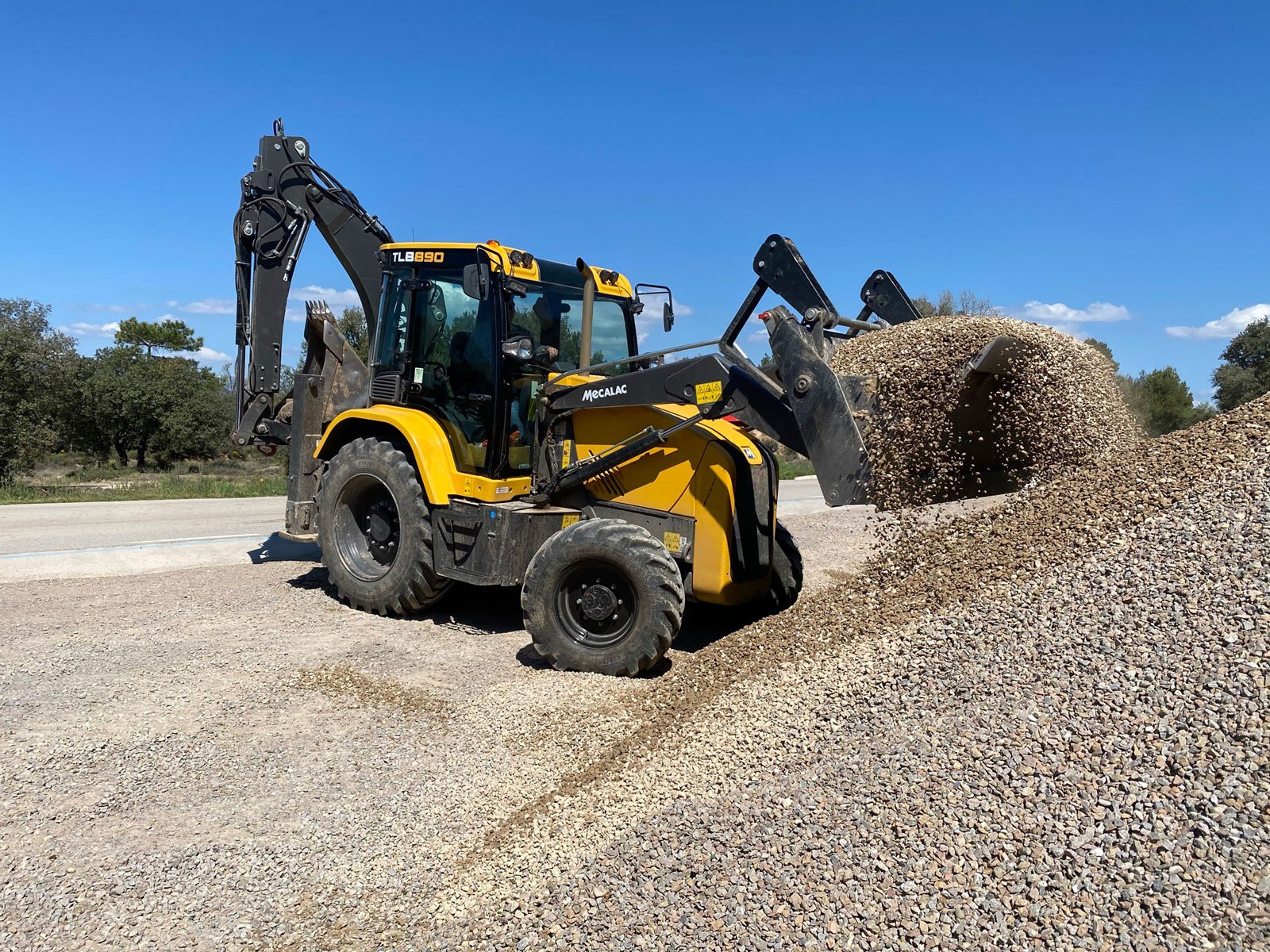

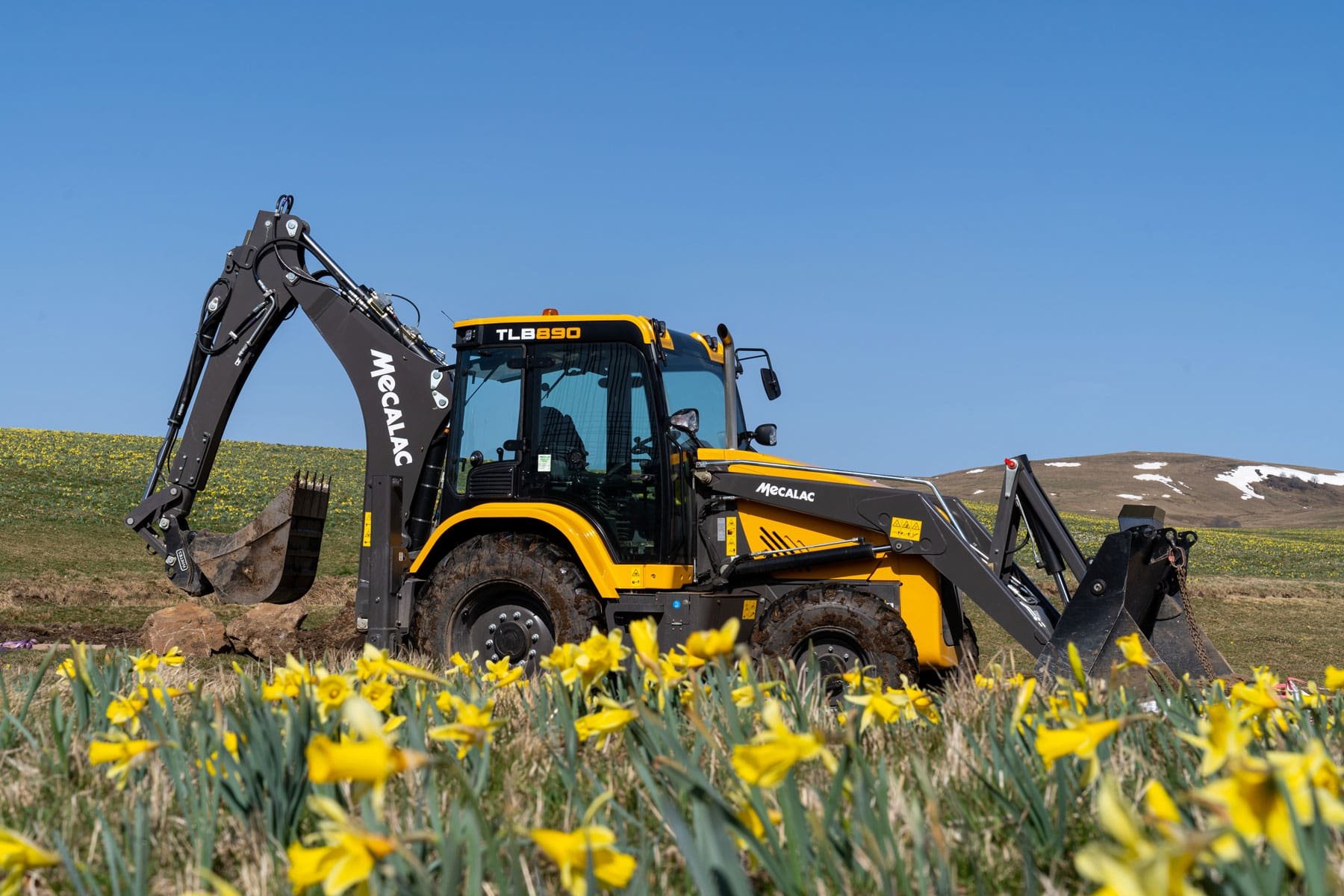

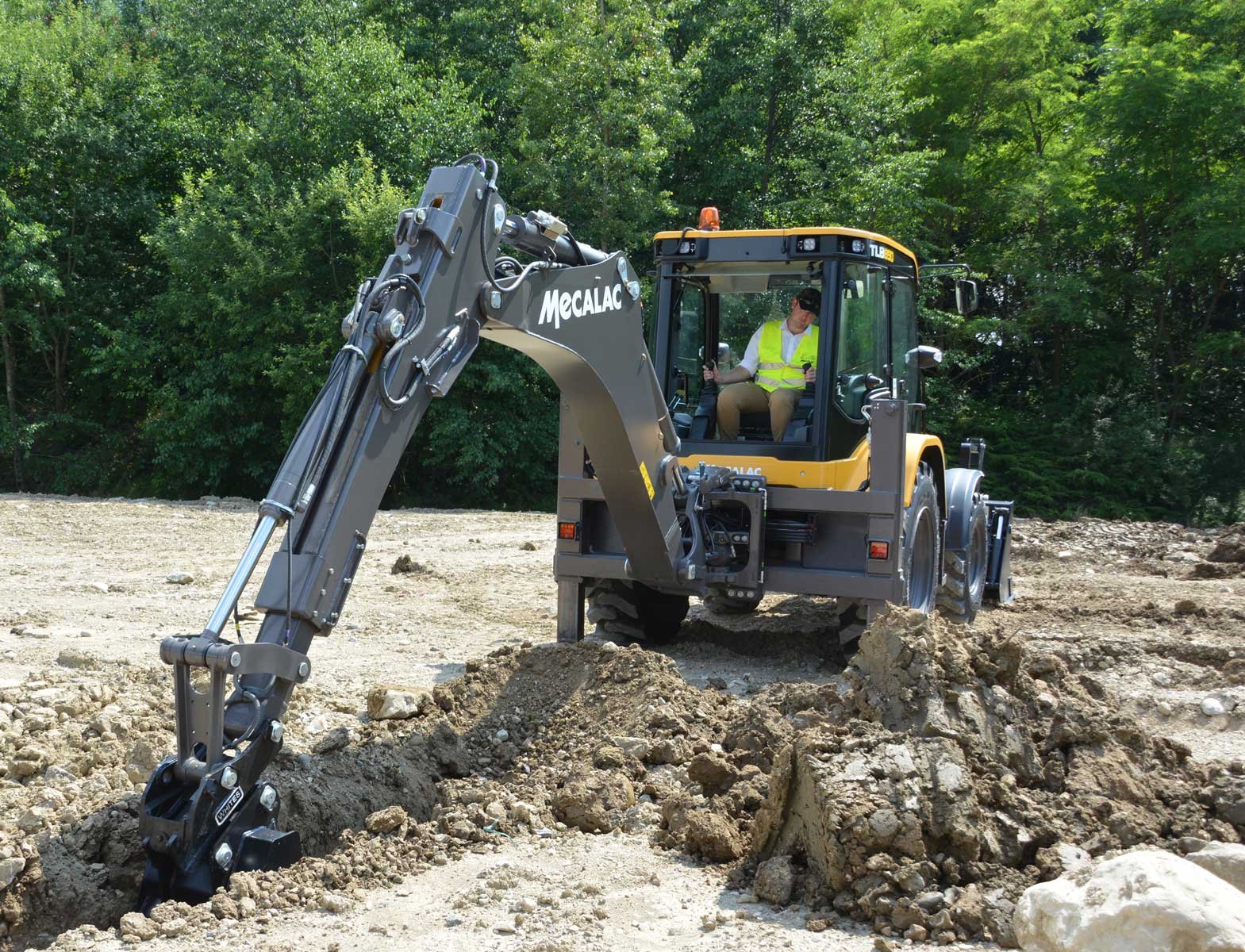

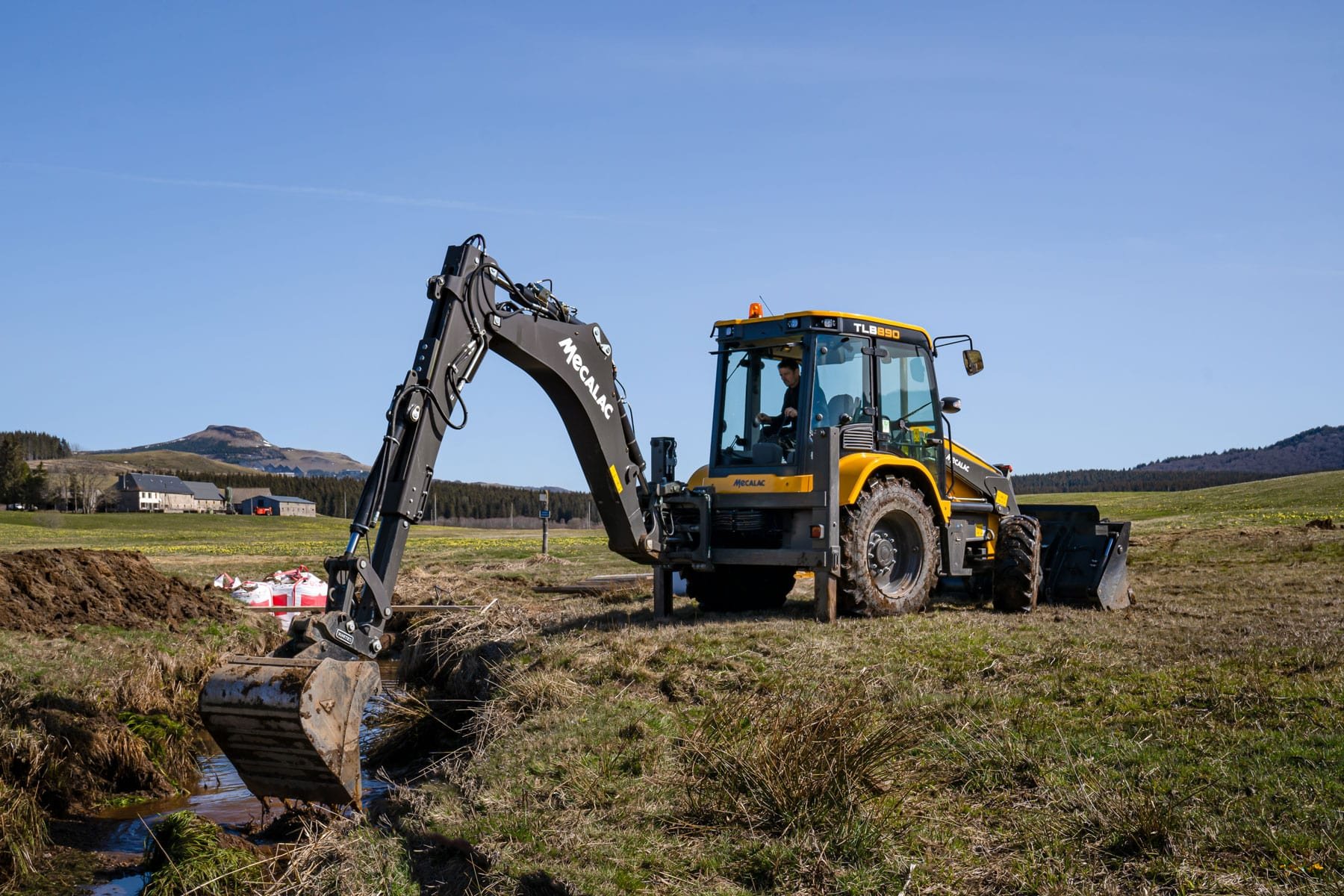

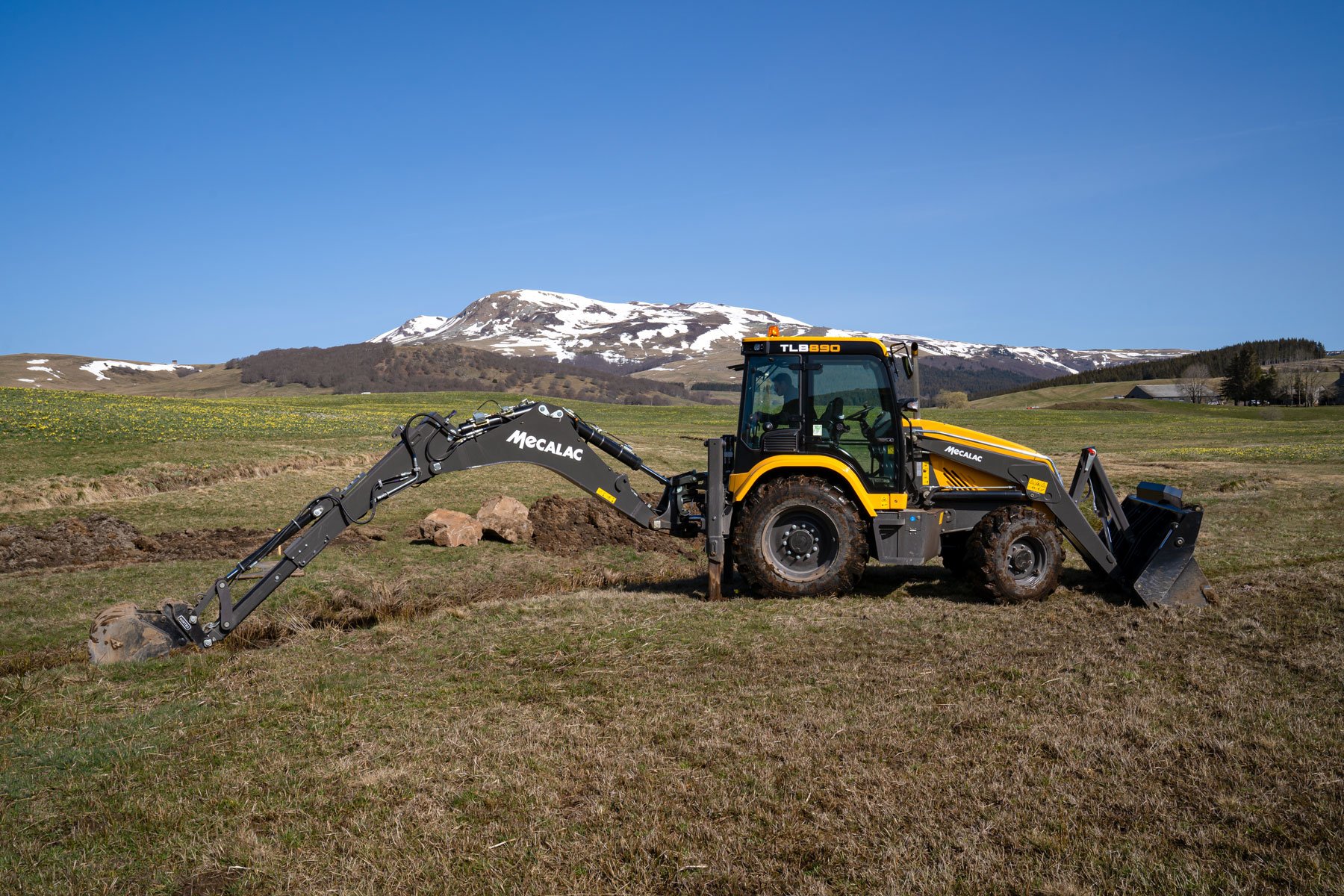

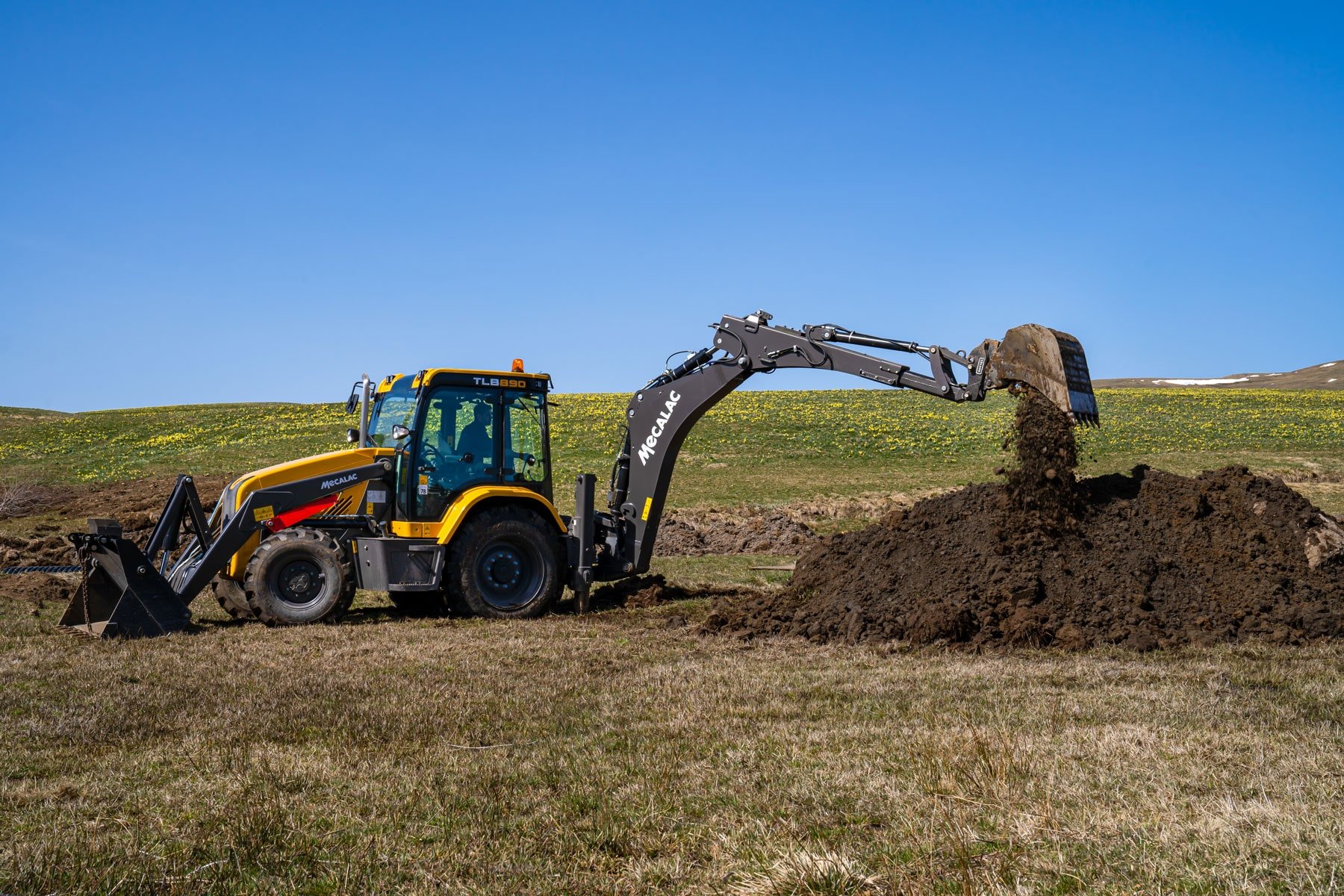

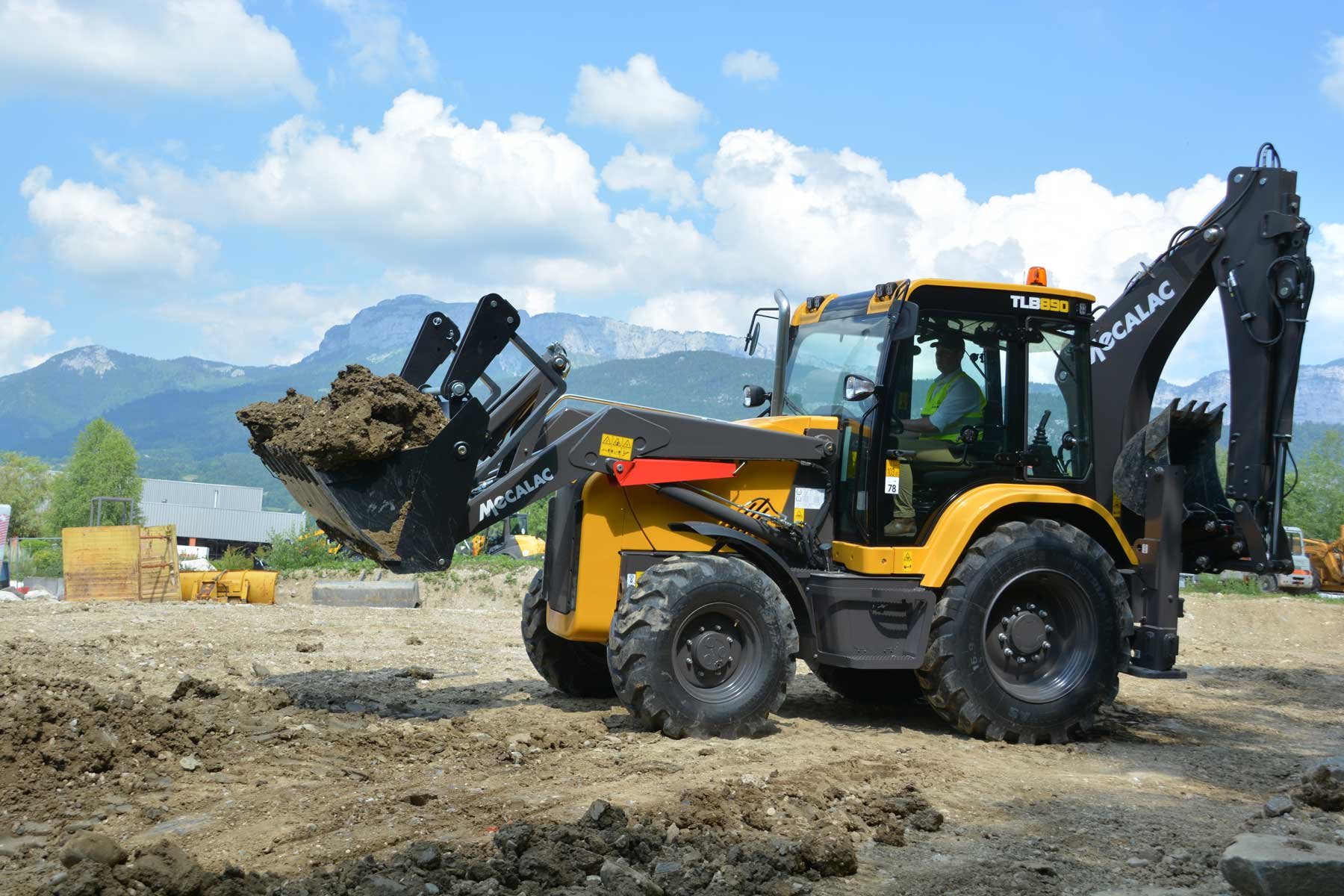

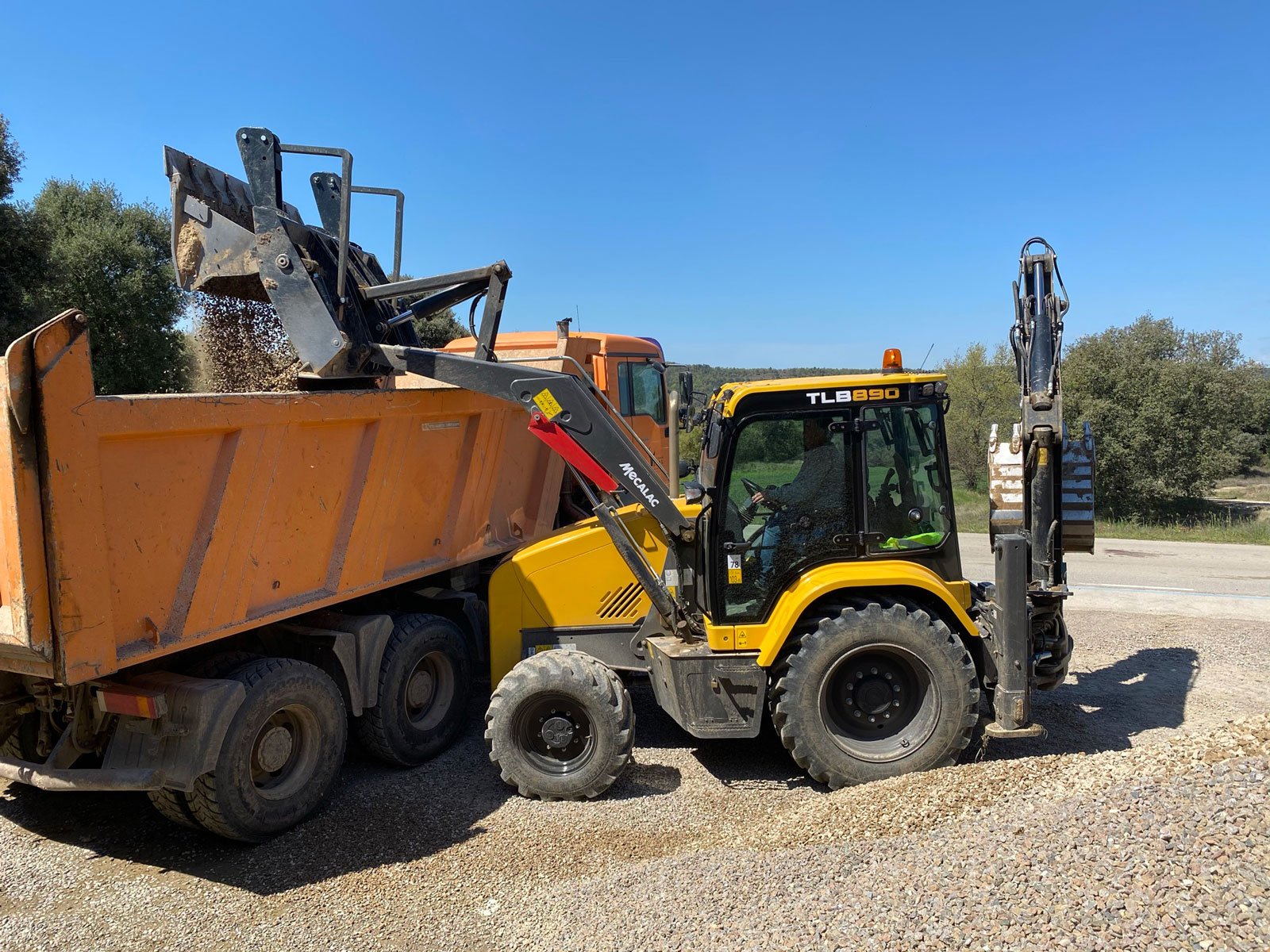

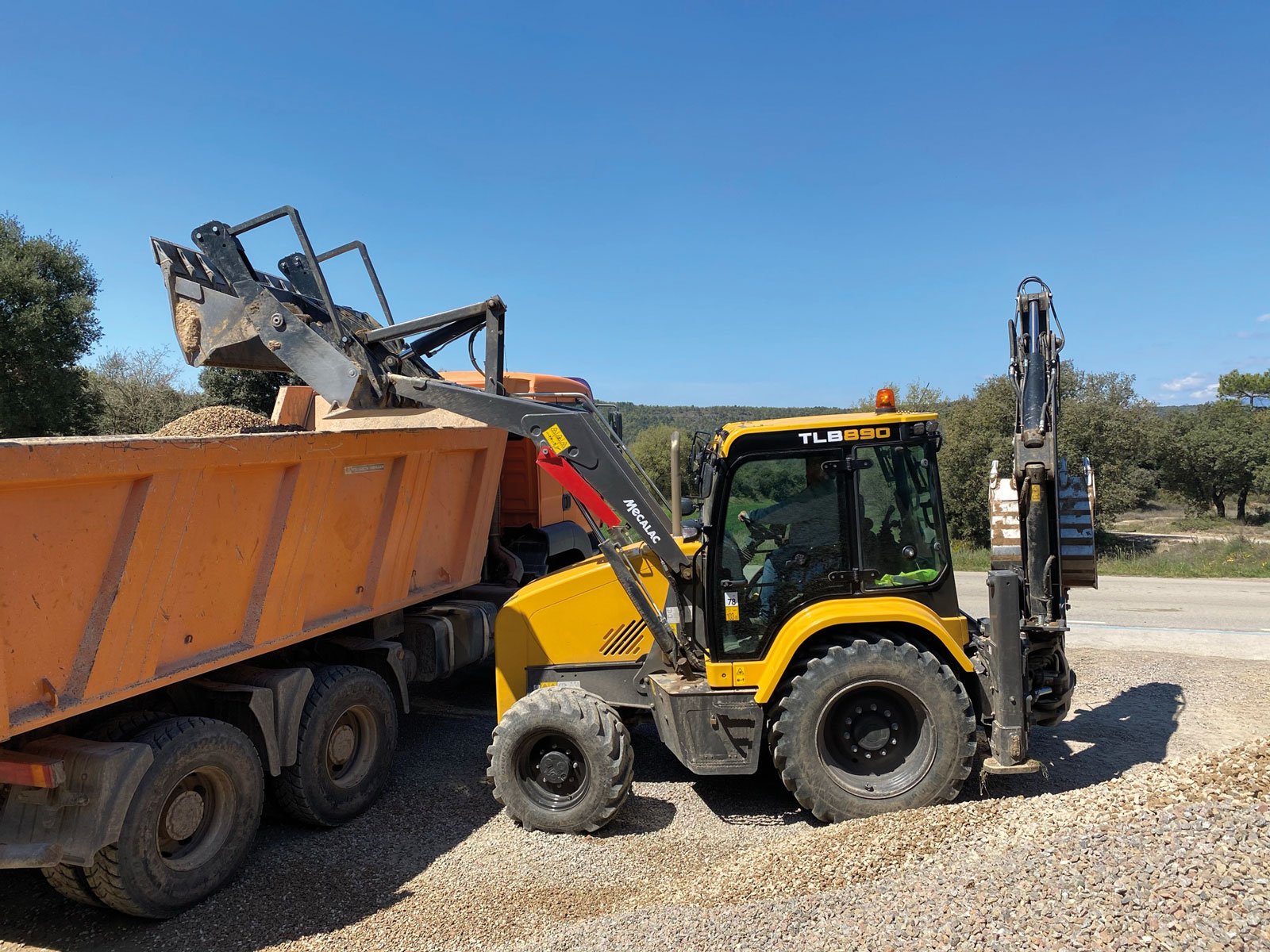

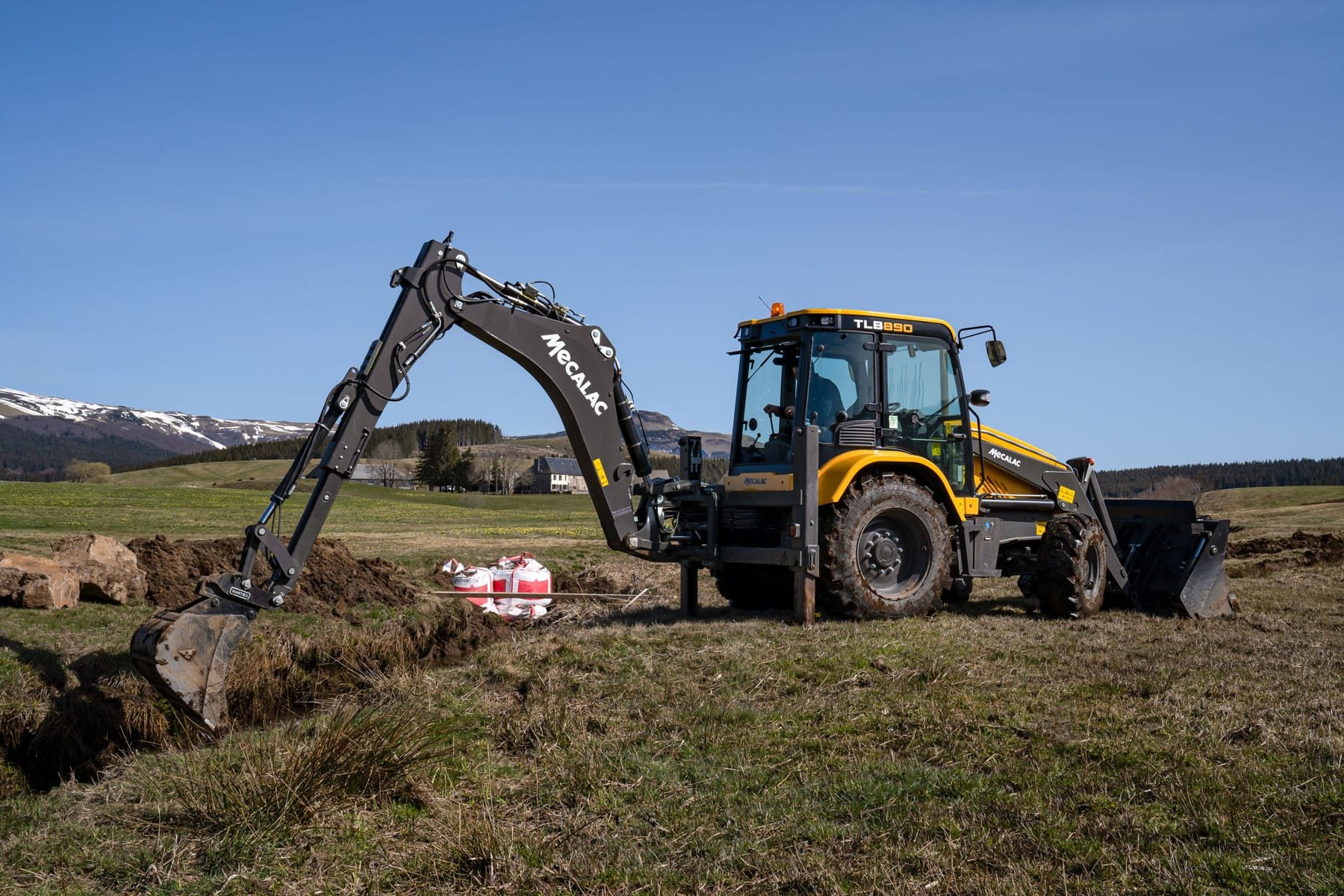

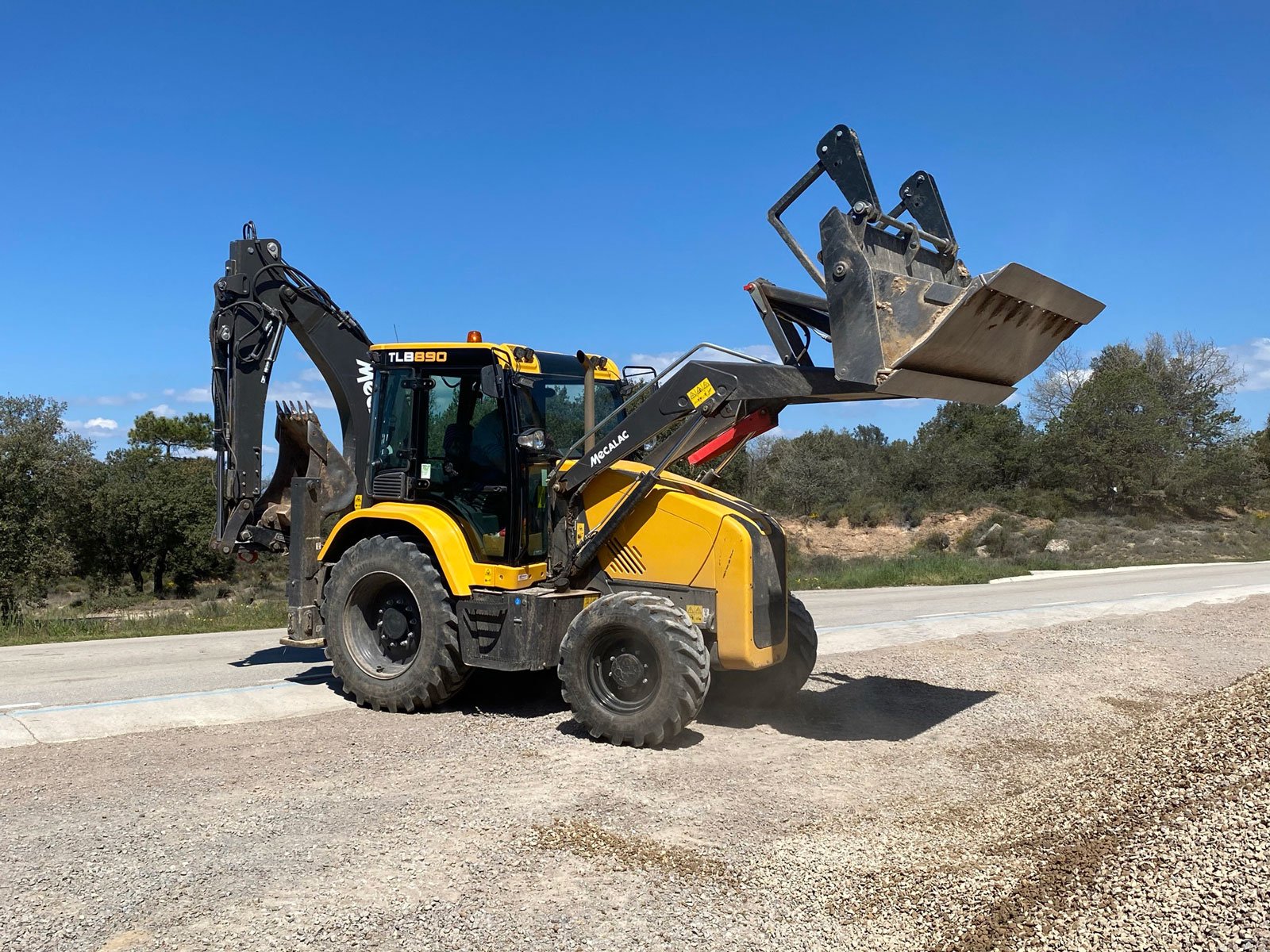

TLB890 in action



Total operating weight8775 kg (19,345 lb)
Turning circle7900 mm (25’9”)
Engine power (kW/hp)82 kW (110 hp) (EU Stage 5)
Engine Power (kW/hp)74,5 kW (100 hp) (Stage IIIA)
Travel speed40 km/h (25 mph)
Overall width2386 mm (7’8”)
Hydraulic SystemClosed Centre
Pump Flow164 l/min (36 gpm)
Tear-out force / Loader5110 daN (11,487 lbf)
Break-out force / Loader5540 daN (12,454 lbf)
Lift capacity @ Max Height3966 kg (8,744 lb)
Lift height / Loader3615 mm (11’10”)
Max. reach6950 mm (22’10”)
Max. depth5698 mm (18’8”)
Tear-out force / Excavator4110 daN (9,240 lbf)
Break-out force / Excavator6780 daN (15,242 lbf)
