Backhoe Loaders - Center Mount TLB830

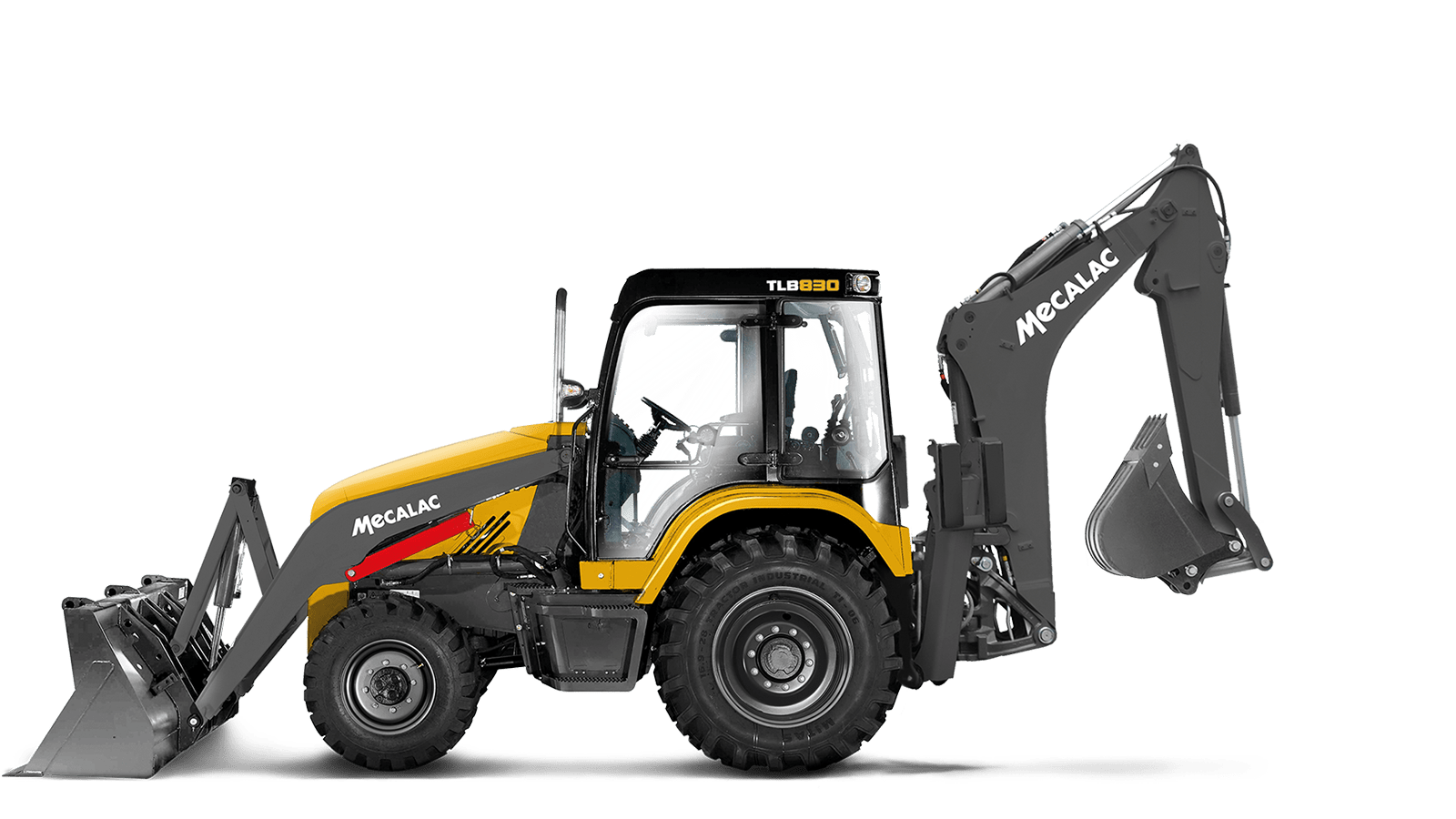

TLB830

Designed to get your job done

Designed with the rental market in mind the TLB830 features a powerful 70kw (94hp) Tier 3 / Stage IIIA engine with 392Nm (289lbf) of torque. Synchro shuttle transmission offers travel speeds of up to 38km/h (23mph) enabling quick transit between worksites. The curved excavator boom increases versatility when working in confined spaces where loading trucks close to the machine or working over objects is essential. Servo excavator controls with SAE/ISO changeover switch ensures any operator can become comfortable in a short space of time. The front loader features a 1m3 bucket as standard, high bucket tearout and lift heights make loading tasks quick and simple when combined with it's class leading turning circle of 7.9m!

Specifications

Total operating weight7215 kg (15,906 lb)
Engine power70 kW (94 hp)
Turning circle7900 mm (25’11”)
Travel speed38 km/h (24 mph)
Overall width2310 mm (7’6”)
Hydraulic SystemOpen Centre
Pump Flow128 l/min (28 gpm)
Tear-out force / Loader4600 daN (10,341 lbf)
Break-out force / Loader4200 daN (9,442 lbf)
Lift capacity @ Max Height3759 kg (8,287 lb)
Lift height / Loader3401 mm (11’2”)
Maximum depth5438 mm (17’10”)
Tear-out force / Excavator3540 daN (7,958 lbf)
Break-out force / Excavator5400 daN (12,139 lbf)
Maximum reach6670 mm (21’11”)
